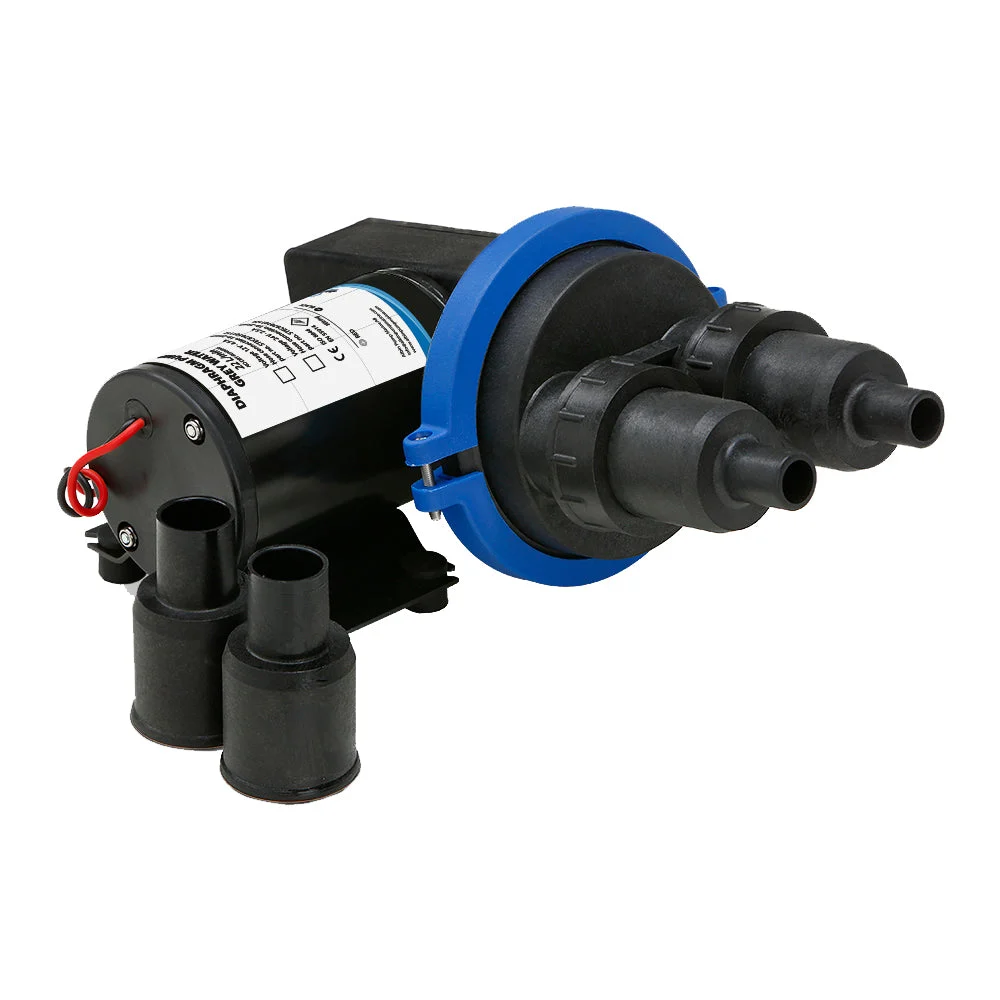

Compact Waste Water Diaphragm Pump – 22L(5.8GPM) – 12V

The most compact single chamber, self priming, diaphragm pump 12V for grey or bilge water. Shower drain, transfer or pump out.

Capacity 22 L/min (5,8 GPM), flexible and very compact installation with 360 degree rotational in-line ports.

Quiet operation and low power consumption. Operates with no need for filter.

Including 19mm (3/4″) and 25mm (1″) straight connectors. 4,5A fuse.

Features:

• Weight: 0.8 kg/1Lb
• Dimensions: 141/5.5L x 105/4H x 140/5.5W mm/in
• Bilge/grey water
• Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

“Compact Waste Water Diaphragm Pump u2013 22L() u2013 12V The most compact single chamber, self priming, diaphragm pump 12V for grey or bilge water. Shower drain, transfer or pump out. Capacity 22 L/min (5,8 GPM), flexible and very compact installation with 360 degree rotational in-line ports. Quiet operation and low power consumption. Operates with no need for filter. Including 19mm (3/4u2032u2032) and 25mm (1u2032u2032) straight connectors. 4,5A fuse. Features: Weight: 0.8 kg/1Lb Dimensions: 141/ x 105/4H x 140/ mm/in Bilge/grey water Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance”
SKU: NVN-73495
MPN: 03-01-015
UPC: 7340176600875
