Description

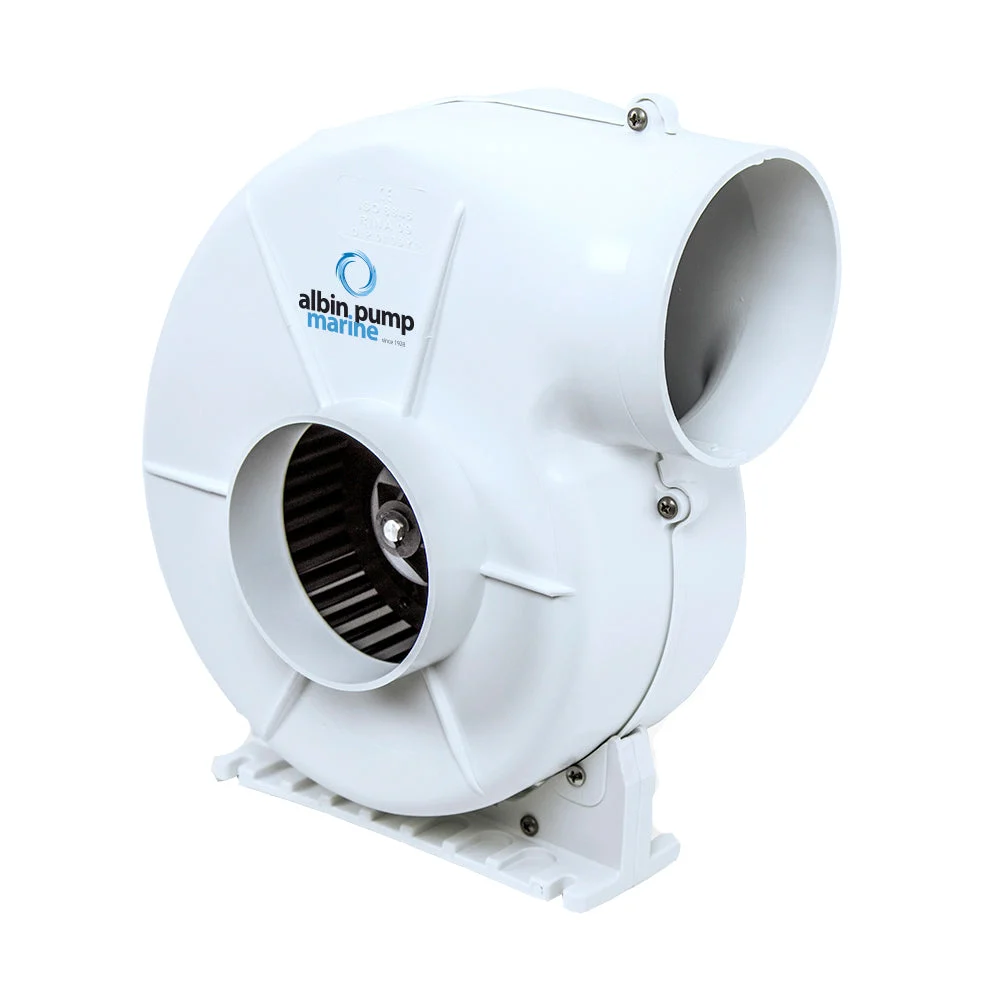

Air Blower 500 Flex – 24V

4″ flex mounted marine ventilation 24V radial blower with capacity 500 m3 per h, 324 CFM. Inlet 100mm, outlet 103mm.

Body in hermoplastic PA6 high durable white Nylon with integrated blower motor. 6A fuse.

Interchangeable with Johnson Pump 80-47420-02.

Features:

• Weight: 2.5 kg/5 lbs
• Dimensions: 290/11.4L x 257/10.12H x 150/5.9W mm/in
• Type: 4″ Flex
• Certification: CE marked ISO 9097:1991 Marine (small craft electrical fans), ISO8846 1990 (ignition protection), ISO 10133 2000 (electrical systems), EN55014-1 2006 (2004/108EC)

Air blower 500 Flex-24V 4-inch flexibly installed 24V radial blower for offshore ventilation, with a capacity of 500 m3 per hour and 324 CFM. The air inlet is 100mm and the outlet is 103mm. The valve body is made of high-strength PA6, durable…
SKU: NVN-73678
MPN: 10-03-008
UPC:
