Description

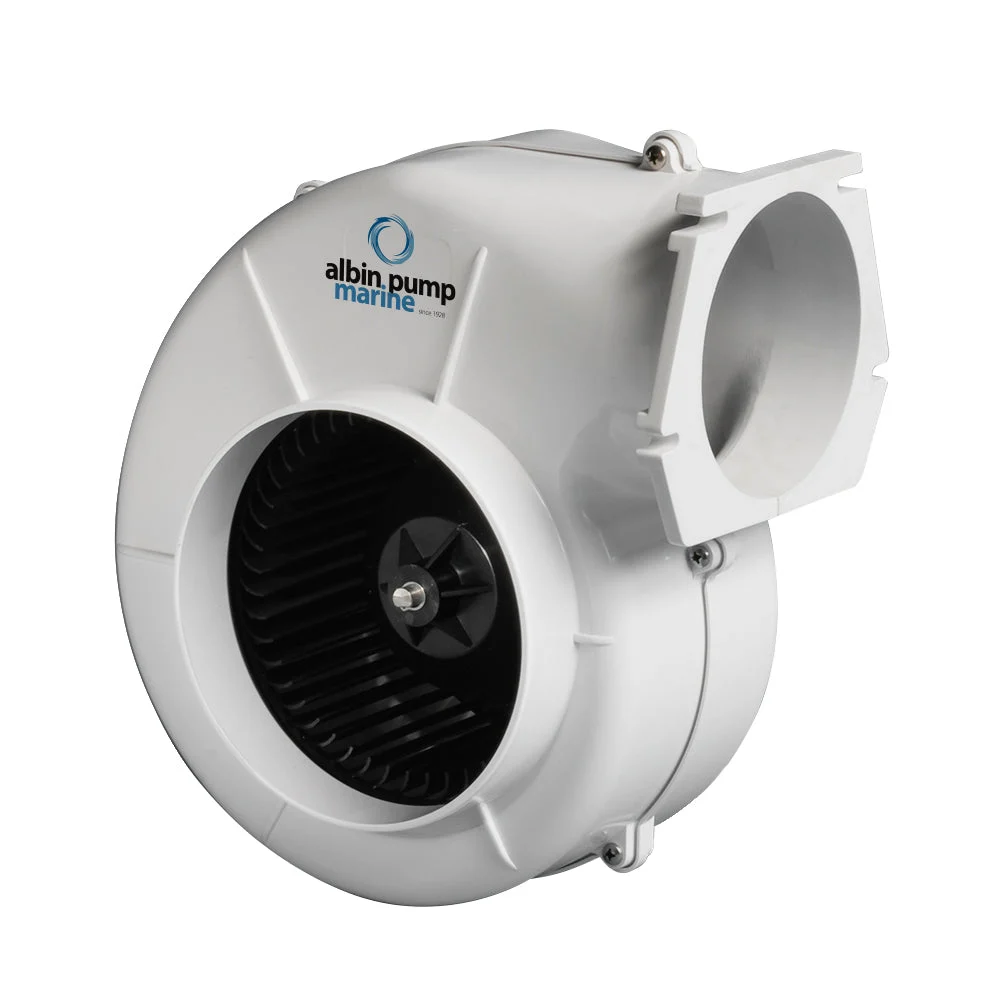

Air Blower 750 Flange – 24V

6″ flange mounted marine ventilation 24V radial blower with capacity 750 m3 per h, 441 CFM. Inlet 150mm, outlet 103mm.

Body in hermoplastic PA6 high durable white Nylon with integrated blower motor. 5A fuse.

Interchangeable with Johnson Pump 80-47418-02.

Features:

• Weight: 2.7 kg/5 lbs
• Dimensions: 290/11.4L x 257/10.12H x 170/6.69W mm/in
• Type: 6″ Flange
• Certification: CE marked ISO 9097:1991 Marine (small craft electrical fans), ISO8846 1990 (ignition protection), ISO 10133 2000 (electrical systems), EN55014-1 2006 (2004/108EC)

Blower 750 flange-24V 6” flange-mounted marine ventilation 24V radial blower, processing capacity of 750 cubic meters per hour, 441 CFM. The entrance is 150mm and the exit is 103mm. The valve body is made of high-strength and durable white nylon nylon PA6, with an integrated blower motor. 5A fuse. It can be interchanged with Johnson Pump 80-47418-02. Product features: weight: 2.7 kg / 5 lbs size: 290 / 11.4L x 257 / 10.12H x 170 / 6.69W mm / in type: 6″ flange certification: CE certification ISO 9097: 1991 marine (small handicraft fan), ISO8846 1990 (ignition protection), ISO 10133 2000 (electrical system), EN55014-1 2006 (2004/108EC)
SKU: NVN-73675
MPN: 10-02-006
UPC: 7340176602459
