Description

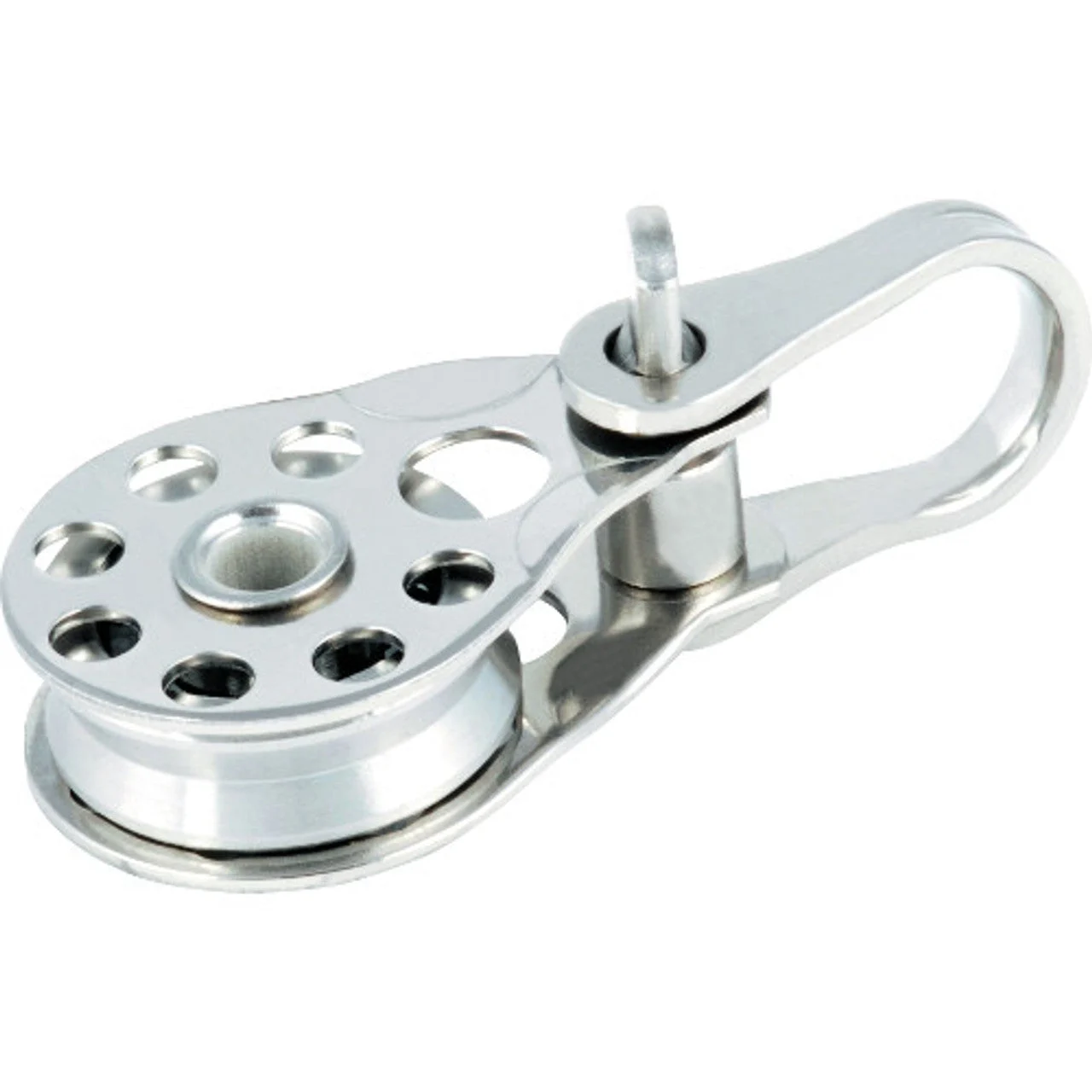

25mm Single Flared Wire Block.

Specifically intended for use where wire lines are subjected to low running speeds and higher static loads.

Flared Body Formed in stainless steel for a lightweight yet robust frame with a flared opening to allow the wire to run at an acute angle from the block.

Bearings A single row of spaced stainless steel ball bearings run on a stainless steel axle. This allows the width of the block to be as narrow as possible whilst still offering excellent rolling speeds and high working loads.

For faster running, lower loaded control lines consider the dynamic range.

Technical Description Features Metric American Sheave Diameter 0.98 in 25 mm Length 2.46 in 62.5 mm Line Diameter 0.08 – 0.28 in 2 – 7 mm Shackle Pin 0.20 in 5 mm Breaking Load 1653.47 lb 750 Kg Weight 0.10 lb 44 g Bearing Detail – Stainless Steel
