Description

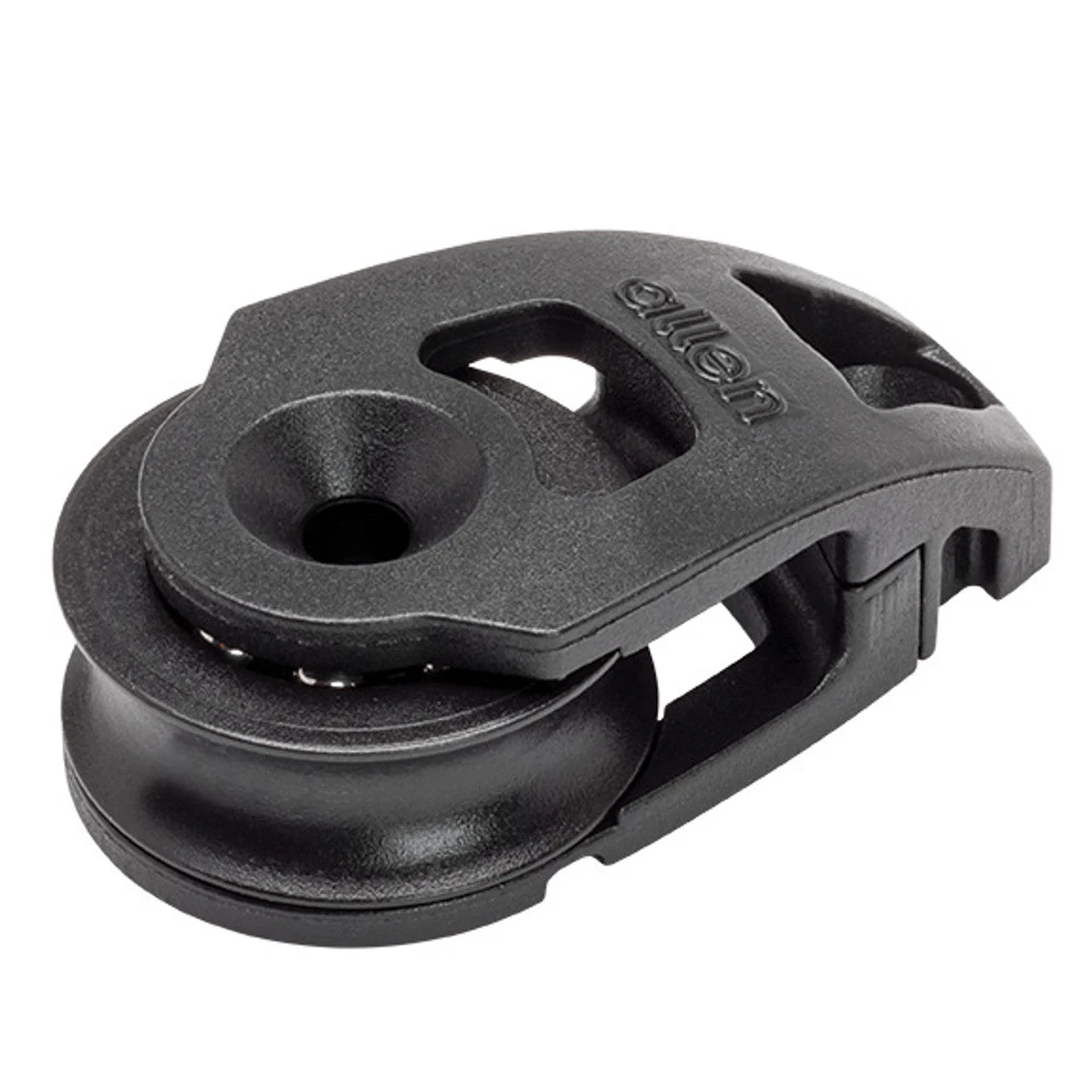

30mm Single Dynamic Composite Cheek Block

Our Dynamic range is generally the best choice for applications that require constant sheave movement.

Cheek blocks are designed to be fixed to a flat surface. Ideal for leading lines along a deck, into a cleat or around corners. Held in place by two screws. One screw through the middle of the sheave and the other through the countersunk hole in the head of the block.

Bearings Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.

Technical Description Features Metric American Length 1.97 in 50 mm Line Diameter 0.31 in 8 mm Hole Centres 1.18 in 30 mm Breaking Load 881.85 lb 400 Kg Maximum Working Load 308.65 lb 140 Kg Weight 0.05 lb 24 g Bearing Detail – Stainless Steel
