Description

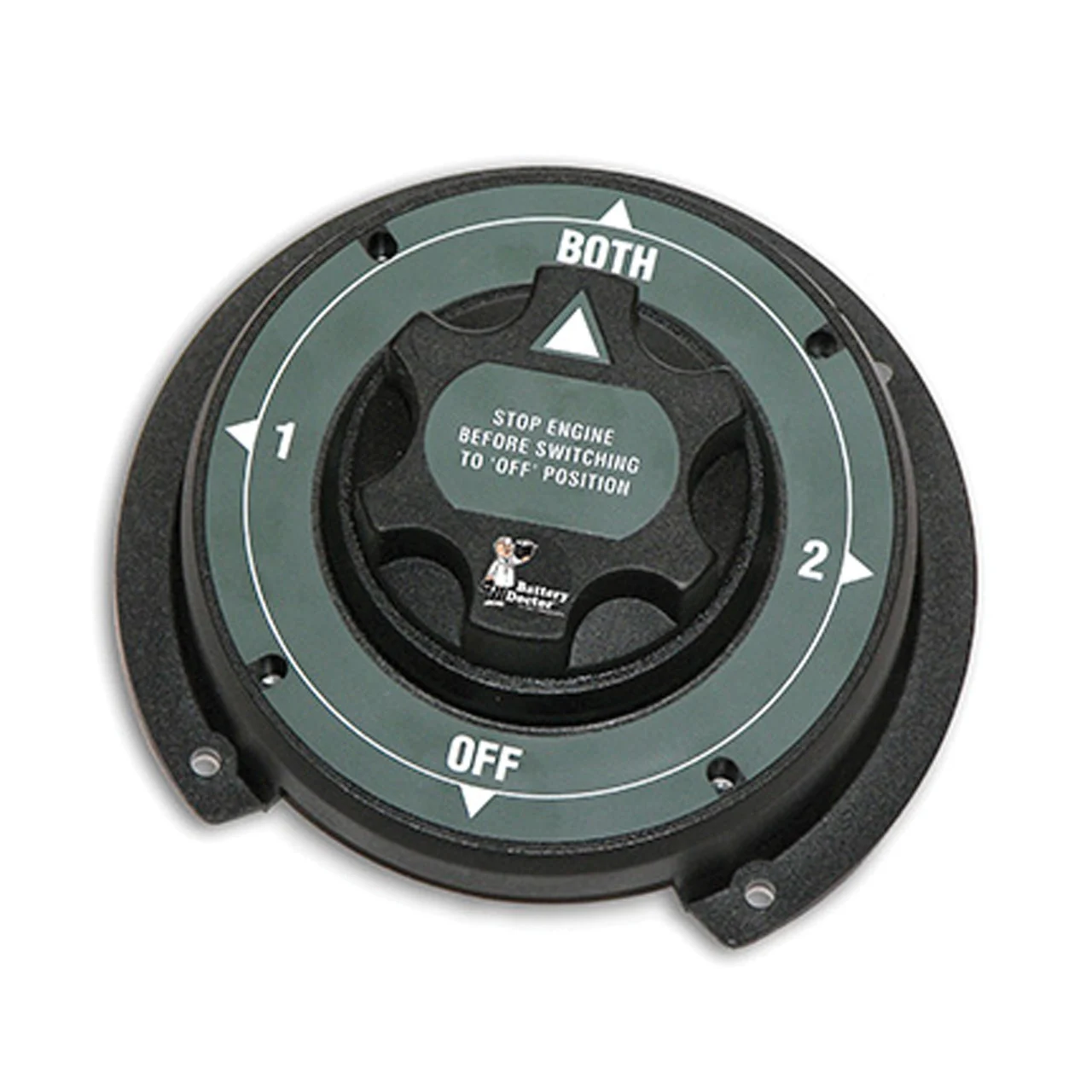

Battery Doctor’s 4-Position Master Battery Disconnect Dual Battery Selector Switch is designed for use on 6-36 Volt dual battery applications. The 4-Position features include: Both/1/2/Off. This Dual Battery Selector Switch is surface mount and includes four mounting holes for easy access with mounting dimensions of 5.75″ and an overall height of 2.625″. Features a continuous rating of 310 Amps and an intermittent rating of 500 Amps for 5 seconds. RoHS compliant.
Designed for use on 6-36 Volt dual battery applications
4-Position Features: Both/1/2/Off
Includes four mounting holes for easy access with mounting dimensions of 5.75″ and an overall height of 2.625″
Surface mount
Continuous Rating: 310 Amps; Intermittent Rating: 500 Amps for 5 seconds
