Description

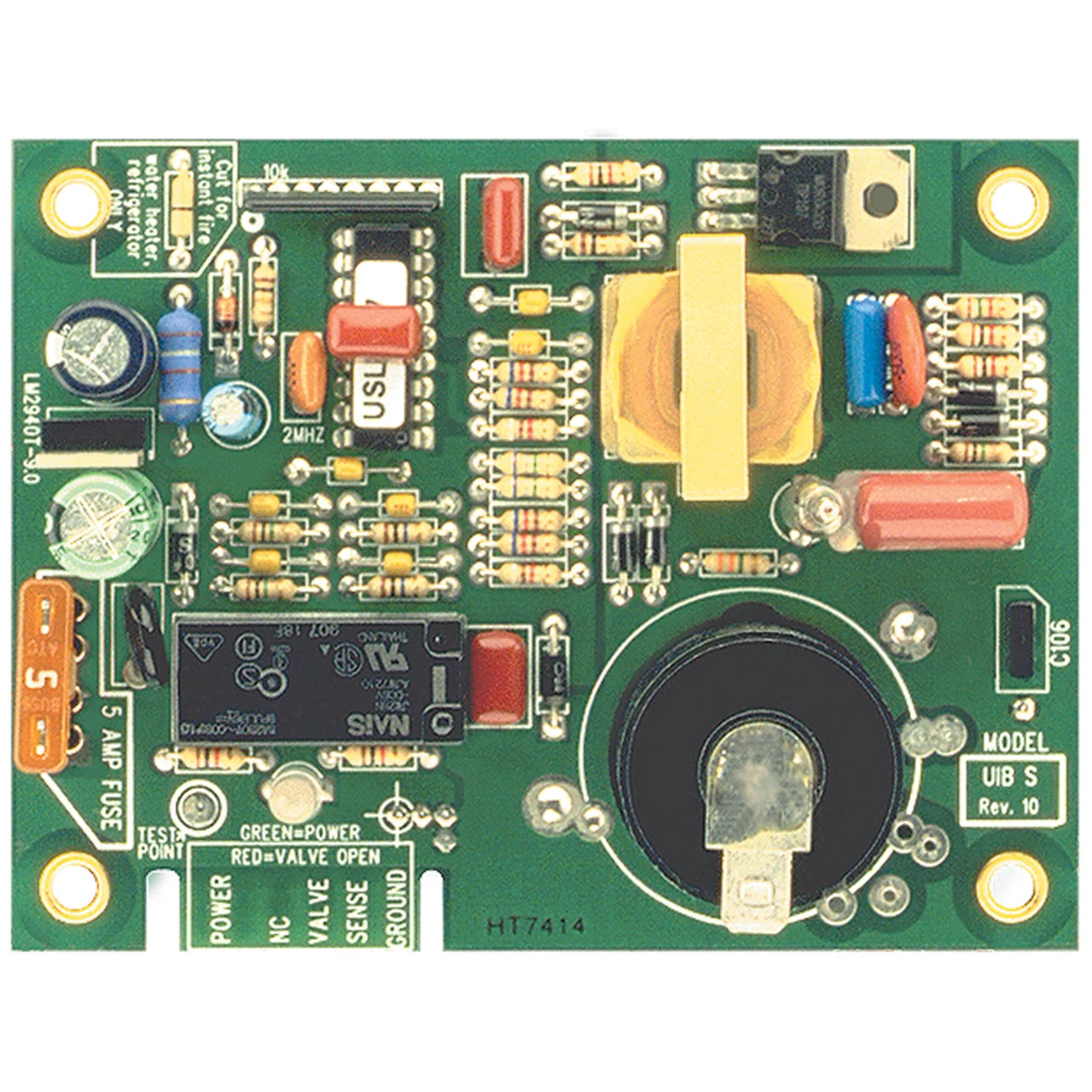

Universal Ignitor Boards are for use in furnaces, refrigerators and water heaters. The board comes ready for use in furnaces or a jumper on the board can be cut to make the board instant fire for use in refrigerators or water heaters. Testing Engineers International have certified the 12 VDC UIB S to UL372 and UL353 specifications as they pertain to the RV industry. Dimensions: 3.25″ x 4.25″ Propane is an explosive gas! Ignitor boards should be installed by trained service technicians.
Superior Construction – “Plated and soldered through holes” to virtually eliminate intermittent connections.
Tries 3 times to ignite gas, with appropriate purge cycles before going into lockout.
Highly reliable microcontroller for accurate and stable operation.
Diagnostic LED helps diagnose problems! GREEN-You have power to the board and NC terminal. RED-You have power to the gas valve terminal.
Replaceable 5 Amp automotive fuse to protect the board from short circuits on the Valve and NC terminals.
