Description

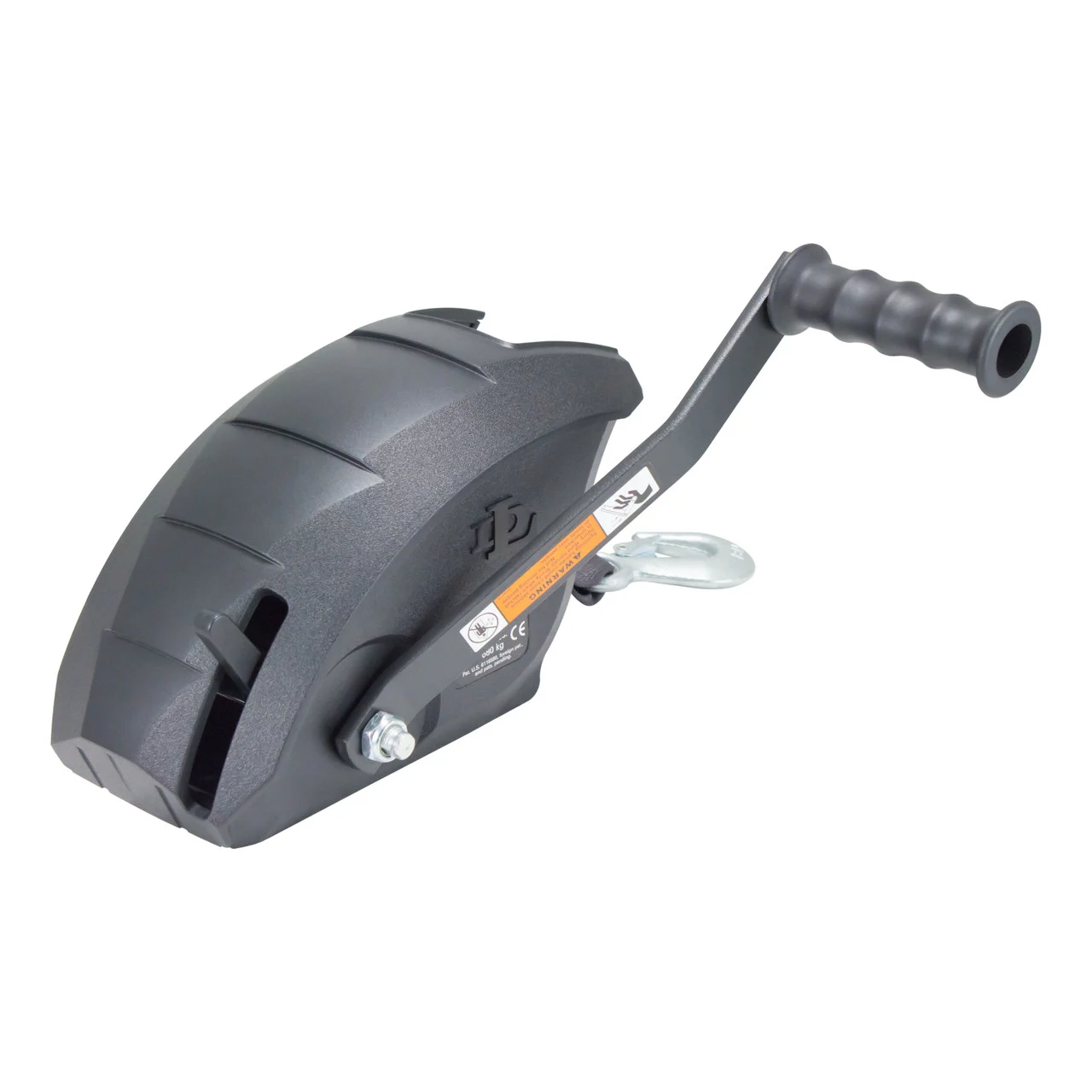

Dutton-Lainson’s DLX1500FC Trailer Winch is a hand/manual/pulling/ratchet winch for horizontal pulling applications. The patented reversible ratchet allows cranking of cable or strap onto winch drum in either direction. It features a 1,500 lb. capacity, a 9.5″ handle with an ergonomic handle grip and freewheel operation for easy line removal. This winch includes a heavy duty polyester 20′ strap with snap hook that is 2″ wide. The three-piece, high impact cover protects interior components of the trailer winch and features a removable hinged top section. It is constructed with a powder coated textured charcoal gray finish on the base and a zinc plated TUFFPLATE finish on the reel and hardware. Note: This trailer winch is only for use with horizontal pulling applications. For vertical lifting applications, order a brake winch, a worm gear winch or a StrongArm electric winch without a clutch lever.
Winch freewheels when the ratchet pawl is disengaged
Load matched gear ratios for easier cranking
All drive shafts have permanently lubricated bearings
Weight Capacity: 1,500 lbs.
Strap Dimensions: 20′ L x 2″ W
