Description

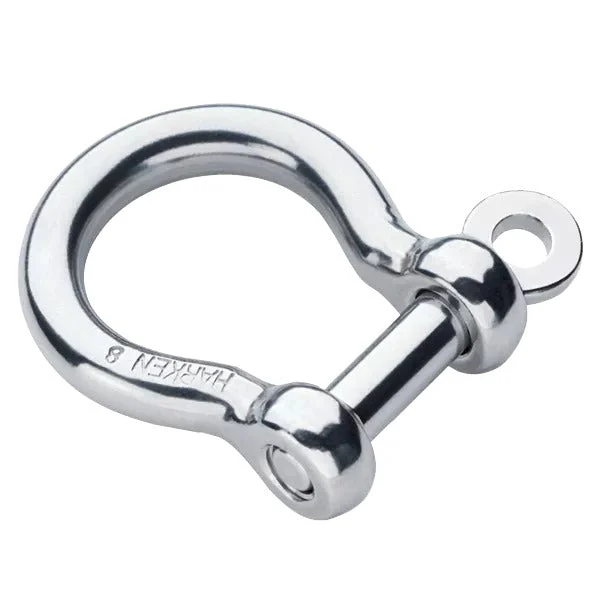

Harken 10mm D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. “D” shackles are the most common type of shackle. They are best suited for aligned attachment points.
Technical Description
| Weight (g) | 120 g |
| Weight (oz) | 4.22 oz |
| Maximum working load (kg) | 2210 kg |
| Maximum working load (lb) | 4870 lb |
| Breaking load (kg) | 4420 kg |
| Breaking load (lb) | 9740 lb |
| A (mm) | 32 mm |
| A (in) | 1 1/4 in |
| B (mm) | 20 mm |
| B (in) | 13/16 in |
| Shackle pin Ø (mm) | 10 mm |
| Shackle pin Ø (in) | 13/32 in |
