Description

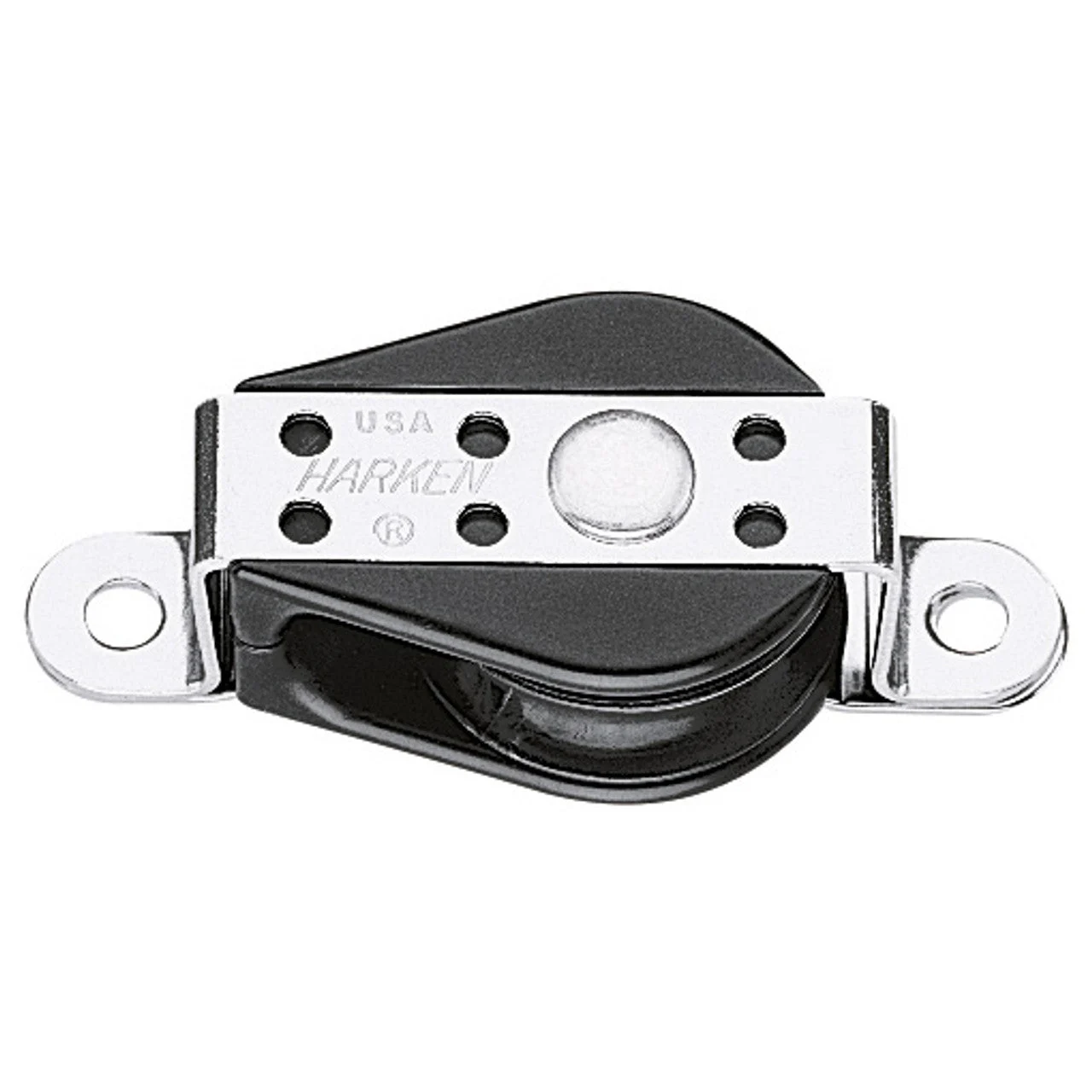

Harken 29mm Bullet Cheek Block for Wire
Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Wire Bullet blocks use roller bearings to carry higher loads and feature hardcoat-anodized PTFE impregnated aluminum sheaves for strength and corrosion resistance.
Technical Description
| Sheave Ø (mm) | 29 mm |
| Sheave Ø (in) | 1 1/8 in |
| Length (mm) | 43 mm |
| Length (in) | 2 7/8 in |
| Weight (g) | 35 g |
| Weight (oz) | 1.25 oz |
| Maximum line Ø (mm) | 8 mm |
| Maximum line Ø (in) | 5/16 in |
| Maximum working load (kg) | 227 kg |
| Maximum working load (lb) | 500 lb |
| Breaking load (lb) | 2000 lb |
| Breaking load (kg) | 907 kg |
| Fasteners (mm) | 5 RH mm |
| Fasteners (in) | #10 RH in |
| Mounting hole spacing (mm) | 56 mm |
| Mounting hole spacing (in) | 2 3/16 in |
