Description

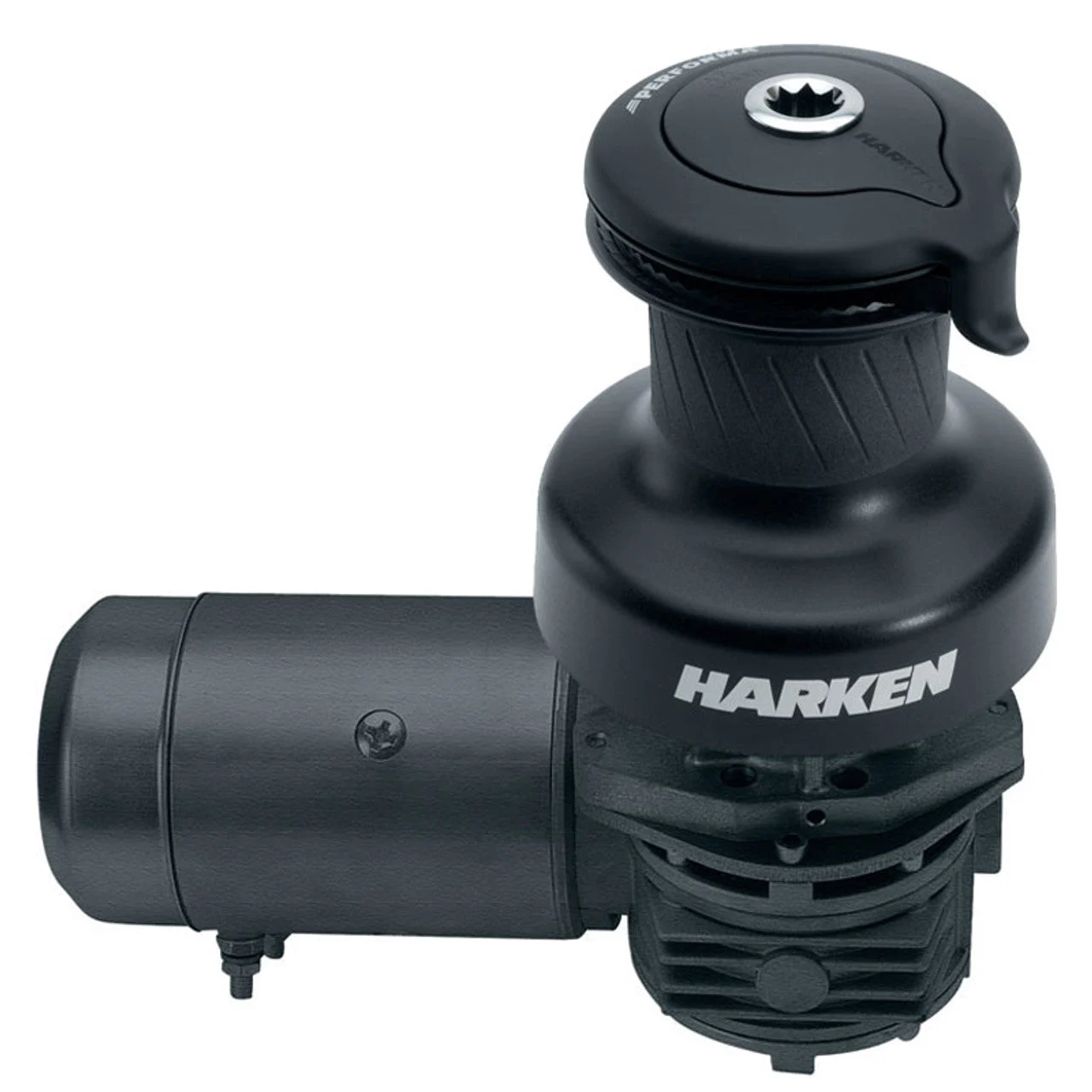

Harken 46 Electric Self-Tailing Performa Winch 2 Speed 24V, Horizontal, Left Mount
All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Electric Performa winches let you trim any size sail with the push of a button.
Technical Description
| Material | Chrome |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 100 mm |
| Drum Ø (in) | 3 15/16 in |
| Base Ø (mm) | 184 mm |
| Base Ø (in) | 7 1/4 in |
| Height (mm) | 202 mm |
| Height (in) | 7 15/16 in |
| Weight (kg) | 5.2 kg |
| Weight (lb) | 11.5 lb |
| Weight of Winch and Motor (kg) | 14.9 kg |
| Weight of Winch and Motor (lb) | 32.8 lb |
| Motor weight (kg) | 9.7 kg |
| Motor weight (lb) | 21.3 lb |
| Line entry height (mm) | 90 mm |
| Line entry height (in) | 3 9/16 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fastener circle (mm) | 150 mm |
| Fastener circle (in) | 5 7/8 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Number of fasteners | 5 |
| Gear ratio – 1 | 2.30 |
| Gear ratio – 2 | 9.17 |
| Power ratio – 1 | 11.70 |
| Power ratio – 2 | 46.50 |
| Racing disconnect rod | B46PDR |
| G (mm) | 227 mm |
| G (in) | 8 7/8 in |
| E (mm) | 43 mm |
| E (in) | 1.75 in |
| F (mm) | 155 mm |
| F (in) | 6.125 in |
