Description

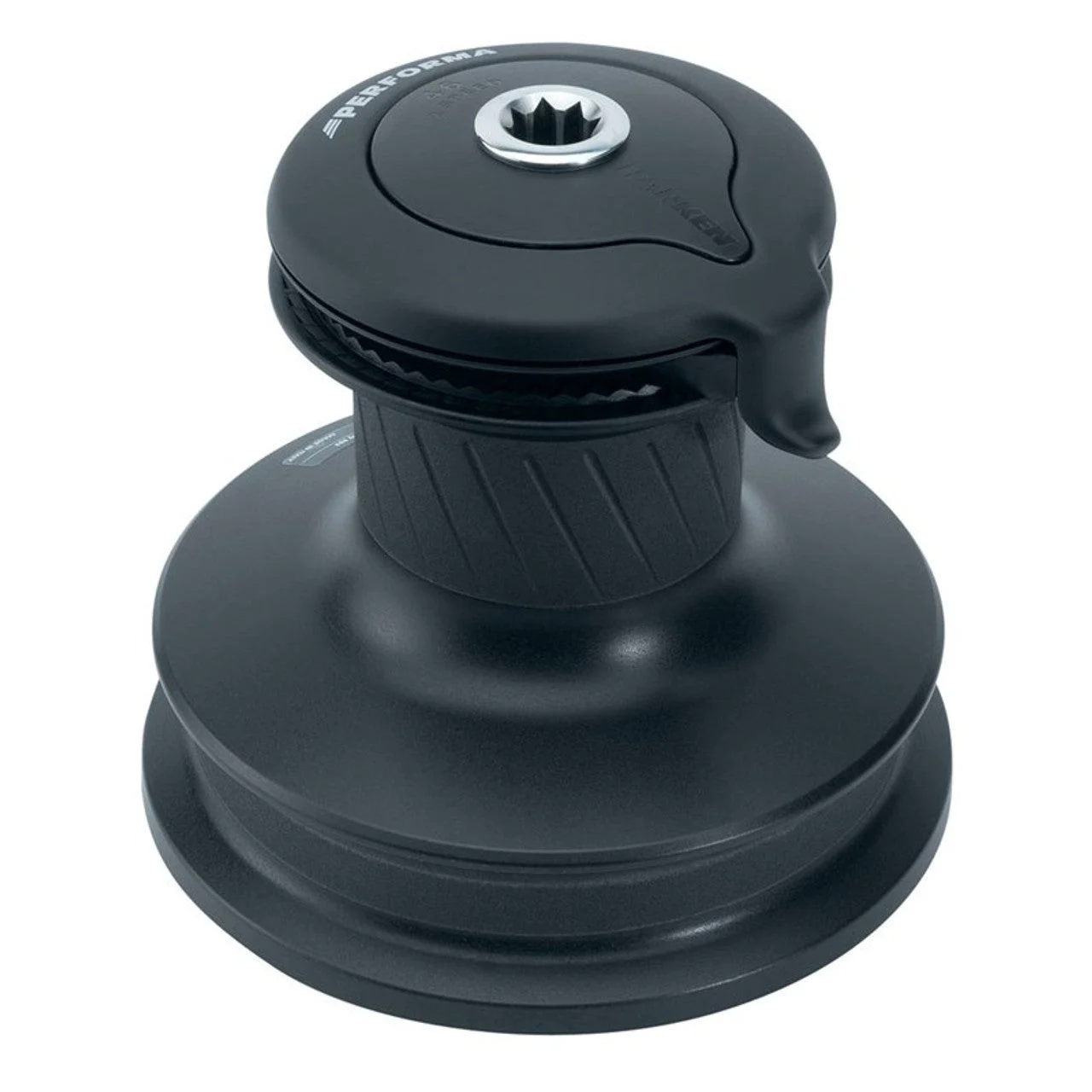

Harken 46 Self-Tailing Quattro Performa Winch 2 Drum, 2 Speed
All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. The Quattro model is an all-in-one aluminum winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind. The 2-speed Quattro features two drum diameters and four line speeds.
Technical Description
| Weight (kg) | 6.2 kg |
| Weight (lb) | 13.7 lb |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 150 mm |
| Fastener circle (in) | 5 7/8 in |
| Height (mm) | 202 mm |
| Height (in) | 7 15/16 in |
| Number of fasteners | 5 |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Quattro |
| Speed | 2 |
| Drum Ø (mm) | 100 mm |
| Drum Ø (in) | 3 15/16 in |
| Drum Ø lower (mm) | 188 mm |
| Drum Ø lower (in) | 7 13/32 in |
| Base Ø (mm) | 218 mm |
| Base Ø (in) | 8 1/2 in |
| Line entry height (mm) | 90 mm |
| Line entry height (in) | 3 9/16 in |
| Line entry height lower (mm) | 24 mm |
| Line entry height lower (in) | 15/16 in |
| Gear ratio – 1 | 2.30 |
| Gear ratio – 2 | 9.17 |
| Power ratio – 1 | 11.70 |
| Power ratio – 2 | 46.50 |
