Description

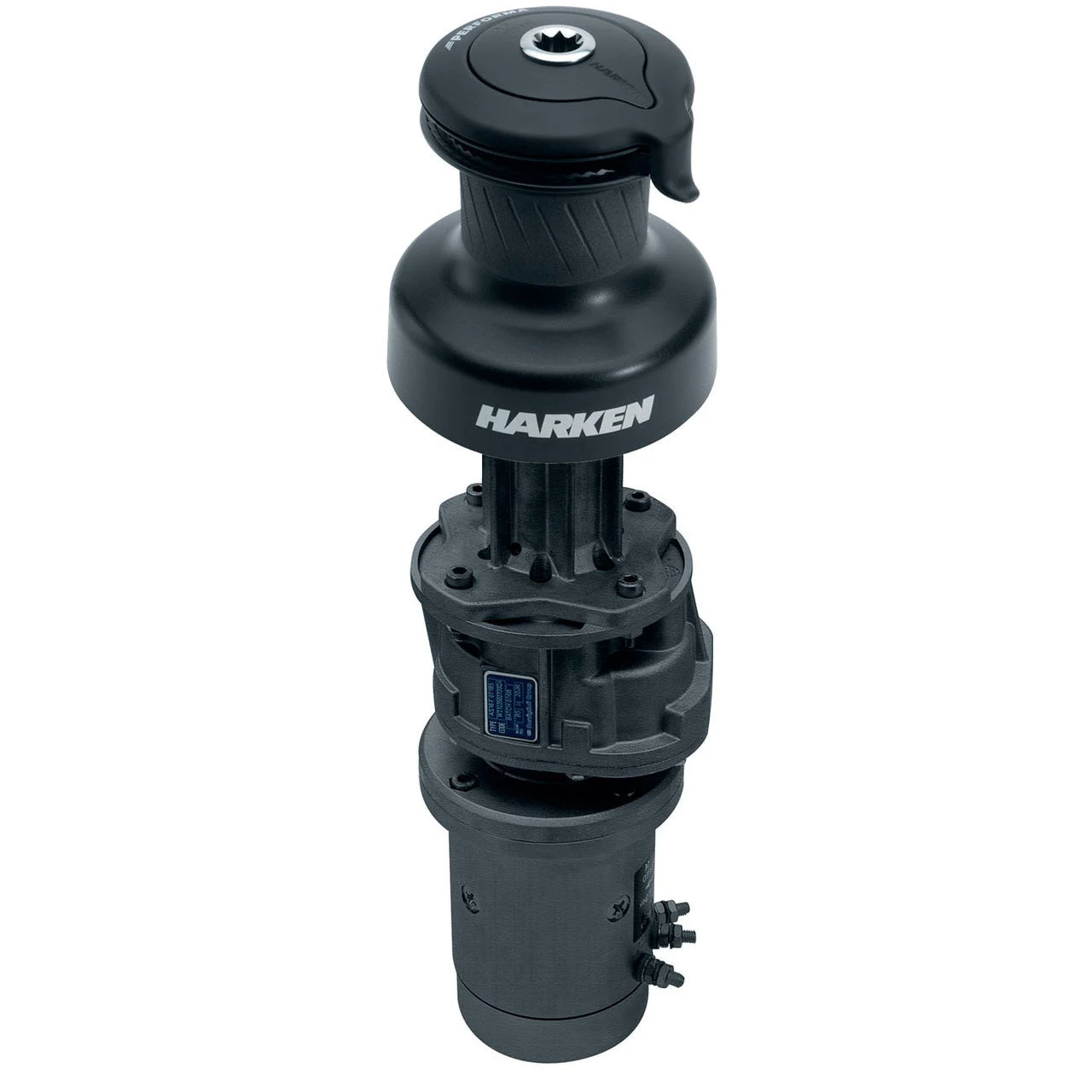

Harken 50 Electric Self-Tailing Performa Winch 2 Speed 12V, Vertical
All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Electric Performa winches let you trim any size sail with the push of a button.
Technical Description
| Weight (kg) | 13.2 kg |
| Weight (lb) | 29.1 lb |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 150 mm |
| Fastener circle (in) | 5 7/8 in |
| Height (mm) | 212 mm |
| Height (in) | 8 5/16 in |
| Number of fasteners | 5 |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 110 mm |
| Drum Ø (in) | 4 5/16 in |
| Base Ø (mm) | 195 mm |
| Base Ø (in) | 7 11/16 in |
| Line entry height (mm) | 97 mm |
| Line entry height (in) | 3 13/16 in |
| Gear ratio – 1 | 2.40 |
| Gear ratio – 2 | 10.90 |
| Power ratio – 1 | 11.10 |
| Power ratio – 2 | 50.40 |
