Description

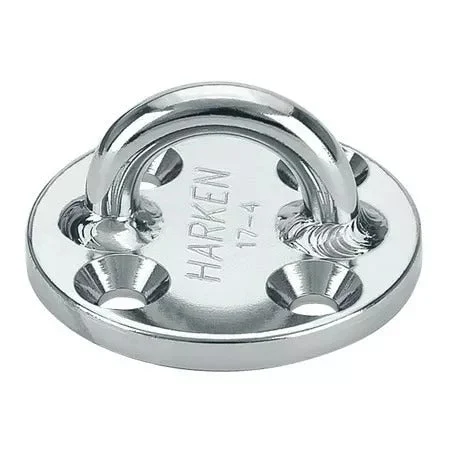

Harken 57mm Small Round SS Padeye
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 627, 629, and 648 padeyes are 17-4 PH stainless.
Technical Description
| Weight (g) | 118 g |
| Weight (oz) | 4.16 oz |
| Fasteners (mm) | 6 FH mm |
| Fasteners (in) | 1/4 FH in |
| A (mm) | 57 mm |
| A (in) | 2 1/4 in |
| C (mm) | 27 mm |
| C (in) | 1 1/16 in |
| D (mm) | 30 mm |
| D (in) | 1 3/16 in |
| E (mm) | 30 mm |
| E (in) | 1 3/16 in |
| F (mm) | 16 mm |
| F (in) | 5/8 in |
| G (mm) | 24 mm |
| G (in) | 1 5/16 in |
| Maximum Working Load – angle 1 (kg) | 2270 kg |
| Maximum Working Load – angle 1 (lb) | 5000 lb |
| Maximum Working Load – angle 2 (kg) | 2040 kg |
| Maximum Working Load – angle 2 (lb) | 4500 lb |
| Maximum Working Load – angle 3 (kg) | 1950 kg |
| Maximum Working Load – angle 3 (lb) | 4300 lb |
| Breaking load – angle 1 (kg) | 4535 kg |
| Breaking load – angle 1 (lb) | 10000 lb |
| Breaking load – angle 2 (kg) | 4080 kg |
| Breaking load – angle 2 (lb) | 9000 lb |
| Breaking load – angle 3 (kg) | 3900 kg |
| Breaking load – angle 3 (lb) | 8600 lb |
