Description

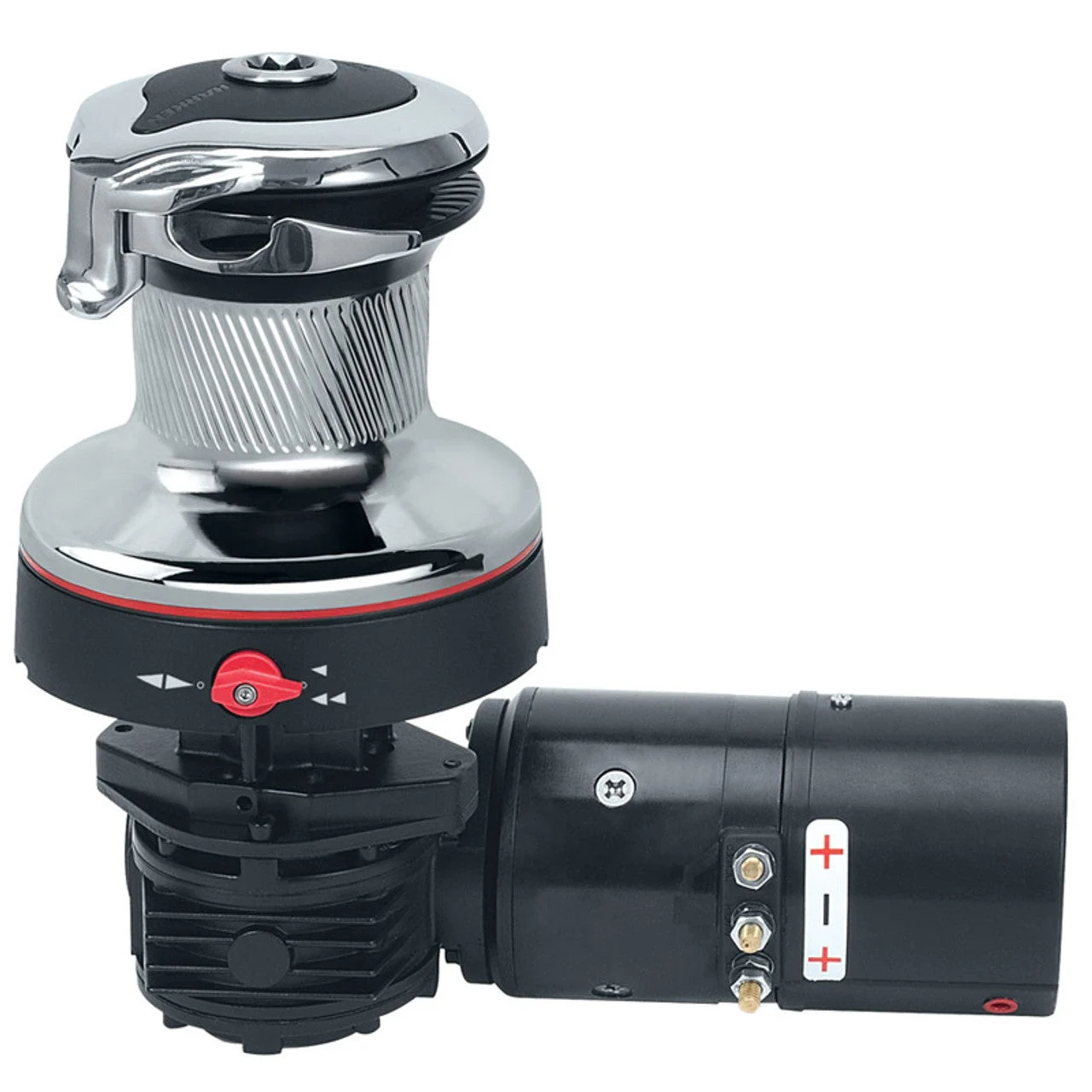

Harken 60 Electric Self-Tailing Rewind Radial Chrome Winch Reverse Speed, 24V
Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control.
Technical Description
| Material | Chrome |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 120 mm |
| Drum Ø (in) | 4 3/4 in |
| Base Ø (mm) | 236 mm |
| Base Ø (in) | 9 5/16 in |
| Height (mm) | 246 mm |
| Height (in) | 9 11/16 in |
| Weight (kg) | 25.8 kg |
| Weight (lb) | 56.9 lb |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 204 mm |
| Fastener circle (in) | 8 in |
| Number of fasteners | 6 |
| E (mm) | 69 mm |
| E (in) | 2 3/4 in |
| F (mm) | 181 mm |
| F (in) | 7 1/8 in |
| Line entry height (mm) | 116 mm |
| Line entry height (in) | 4 9/16 in |
| Minimum line Ø (mm) | 14 mm |
| Minimum line Ø (in) | 9/16 in |
| Gear ratio – 1 | 4.80 |
| Gear ratio – 2 | 14.40 |
| Power ratio – 1 | 20.30 |
| Power ratio – 2 | 61.00 |
| Voltage (V) | 24 |
| G (mm) | 280 mm |
| G (in) | 11 in |
| Available power | Electric horizontal 24V |
