Description

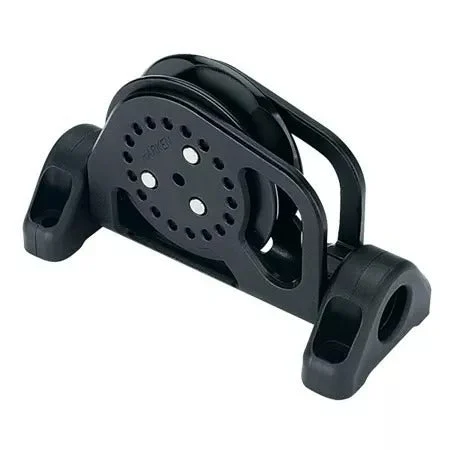

Harken 75mm Carbo Ratchamatic Flip Flop Block
Small Boat Flip-Flop blocks pivot around the line axis to keep the line close to the deck. Hinged construction allows for various lead angles. Ratchamatic block versions roll freely in both directions under low loads and automatically engage a ratchet mechanism as loads increase, giving sailors a holding power of up to 15:1. The ratchet engagement can be adjusted to a higher or lower load depending on the sailor’s strength, sailing style and system usage.
Technical Description
| Sheave Ø (mm) | 75 mm |
| Sheave Ø (in) | 3 in |
| Length (mm) | 143 mm |
| Length (in) | 5 5/8 in |
| Width (mm) | 64 mm |
| Width (in) | 2 1/2 in |
| Height (mm) | 89 mm |
| Height (in) | 3 1/2 in |
| Weight (g) | 304 g |
| Weight (oz) | 11 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 7/16 in |
| Maximum working load (kg) | 340 kg |
| Maximum working load (lb) | 750 lb |
| Breaking load (lb) | 1500 lb |
| Breaking load (kg) | 680 kg |
