Description

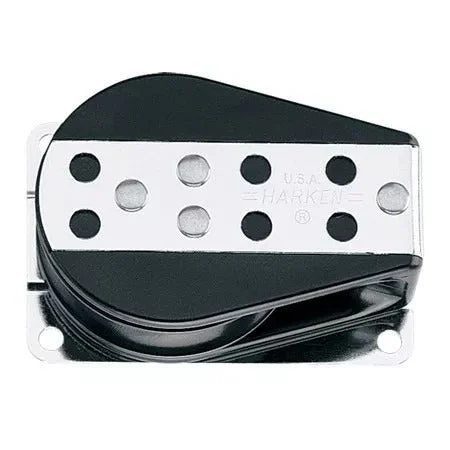

Harken 76mm Midrange Cheek Block
Midrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.
Technical Description
| Sheave Ø (mm) | 76 mm |
| Sheave Ø (in) | 3 in |
| Length (mm) | 111 mm |
| Length (in) | 4 3/8 in |
| Weight (g) | 312 g |
| Weight (oz) | 11 oz |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fasteners (mm) | 6 RH mm |
| Fasteners (in) | 1/4 RH in |
| Maximum working load (kg) | 680 kg |
| Maximum working load (lb) | 1500 lb |
| Breaking load (kg) | 1905 kg |
| Breaking load (lb) | 4200 lb |
