Description

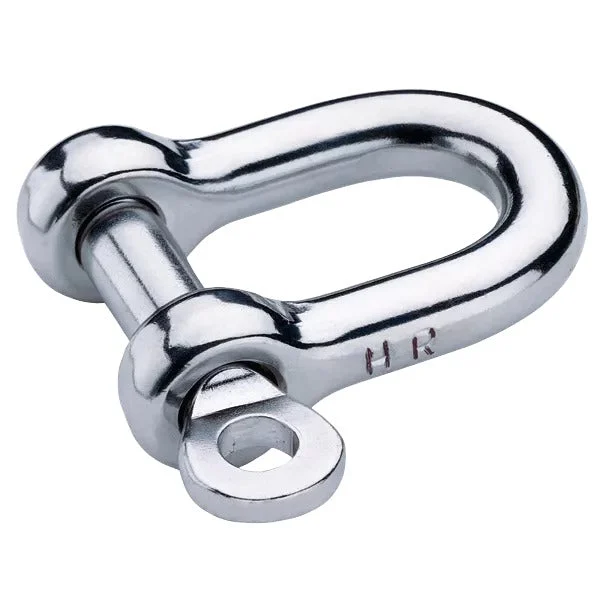

Harken 8mm High Resistance D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an “HR” imprint for easy identification.
Technical Description
| Weight (g) | 56.7 g |
| Weight (oz) | 2 oz |
| Maximum working load (kg) | 2330 kg |
| Maximum working load (lb) | 5130 lb |
| Breaking load (kg) | 4650 kg |
| Breaking load (lb) | 10260 lb |
| A (mm) | 25 mm |
| A (in) | 1 in |
| B (mm) | 16 mm |
| B (in) | 5/8 in |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 5/16 in |
