Description

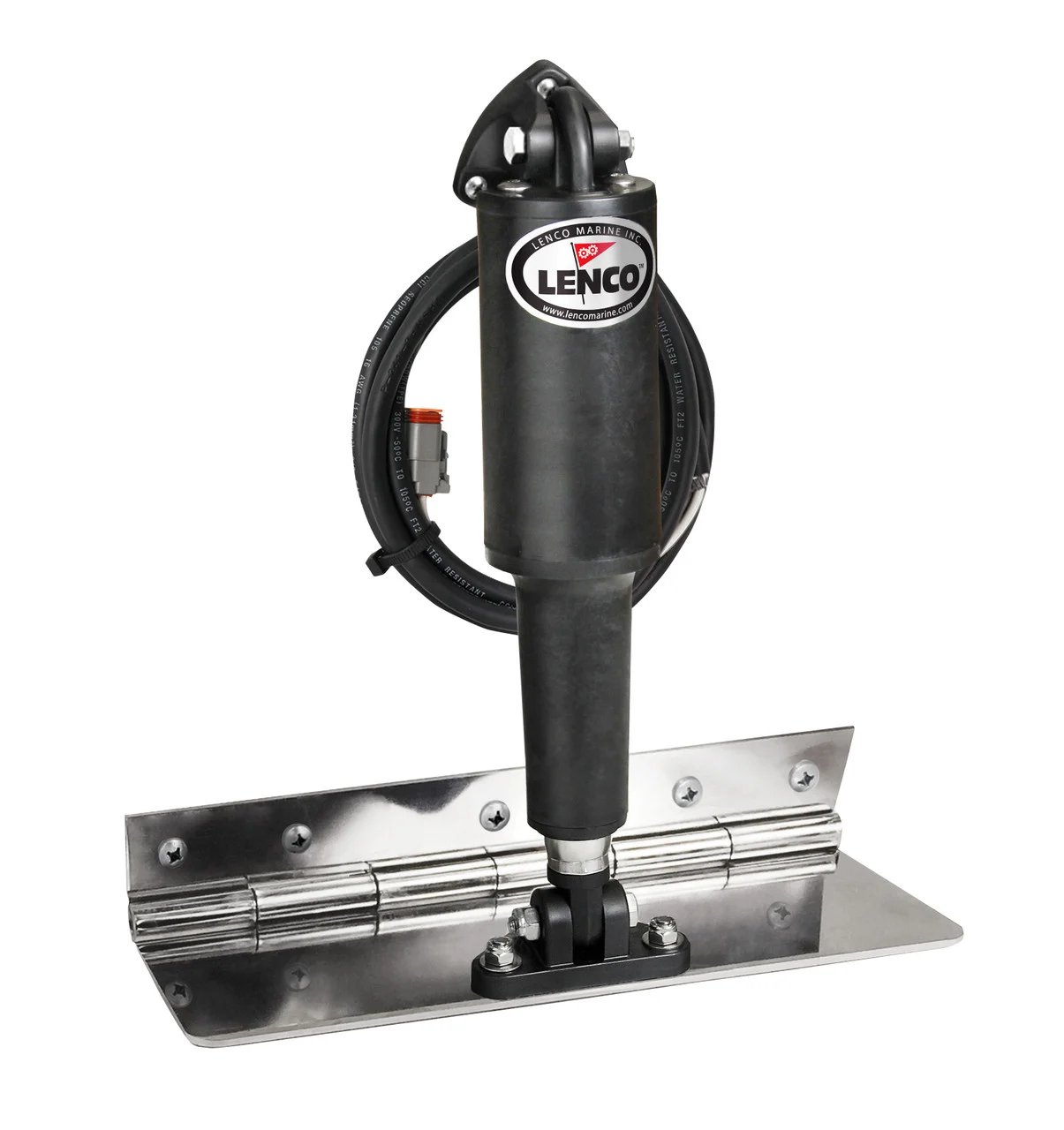

Engineered to fit behind ladders. This unique design gives you all the benefits of a standard tab in an ultra compact design. These kits are updated with 11-gauge stainless steel blades. Boat lengths 14’ (4.3 m) to 25’ (7.6 m). Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8”(9.5 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Kit includes: (2) NEW 11-gauge stainless steel blades with option of standard finish or Electro-Polish finish, (2) actuators with 6′ (1.8 m) lead and Deutsch connectors, (2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length, (2) 15085-001 upper mounting brackets with gland seal, lower mounting brackets, stainless steel hardware and Lenco owner’s/installation manual. Switch kits sold separately.

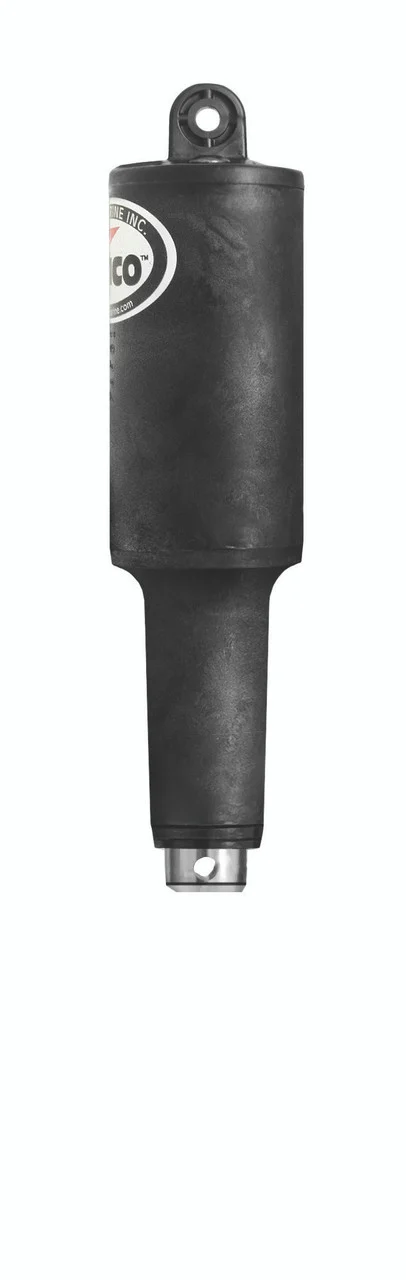

Actuators in Kit: 15054-001 Standard
Boat Length: 14′ to 25′
Hinge Height: 2″ (5.1 cm)
Min. Transom Height: 14.5” (36.8 cm)
Dimensions: 4″ x 12″
