Description

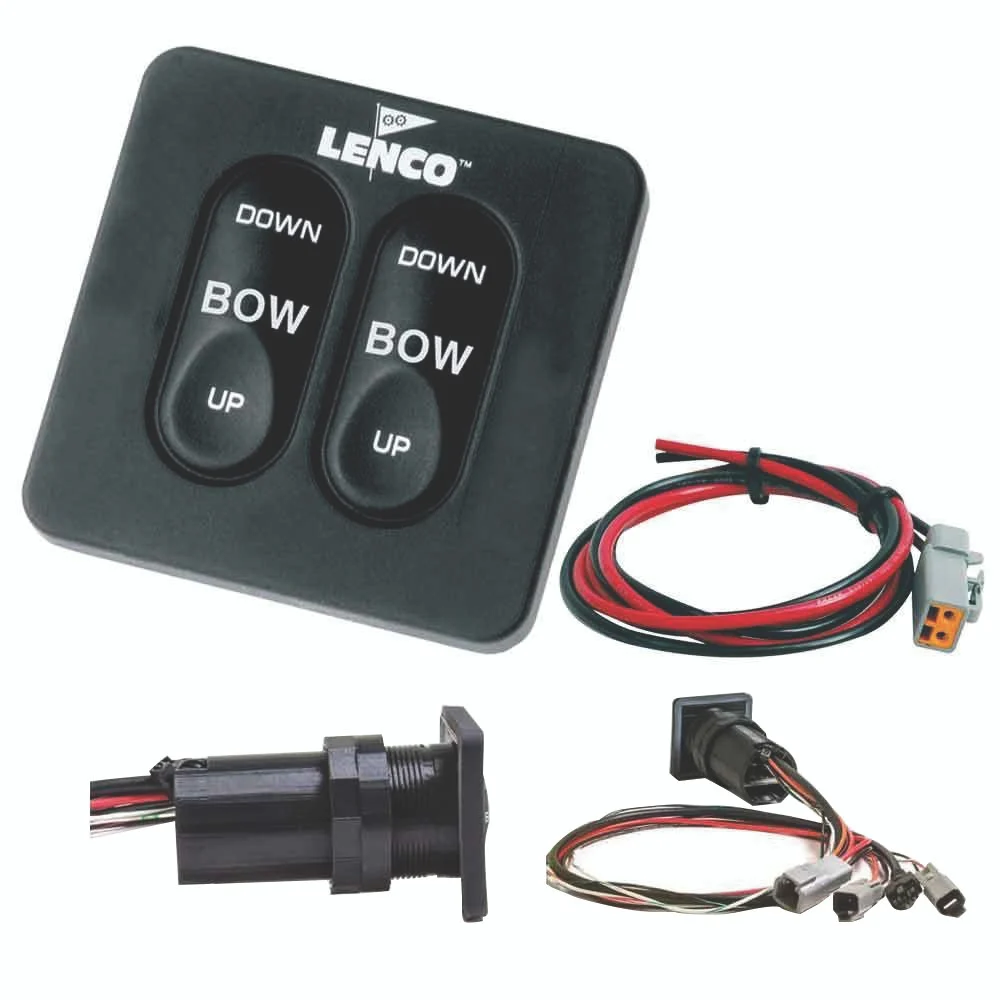

Complete your Lenco single actuator trim tab system with the latest, maintenance-free, Standard (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel. Standard Integrated Switch features: Simple, quick, Plug & Play installation, instant response, built-in retractor, self-contained key pad with waterproof Plug & Play Deutsch connectors, wiring harness length 30″ (76.2 cm) from the back of the switch bezel, 36″ power pigtail, 2.0625″ hole cut-out size, overall key pad size of 2.75″ x 2.75″ and 4.08″ clearance required from the back of the key pad’s mounting location.
2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
Wiring harness length 30″ (76.2 cm) from the back of the switch bezel
36″ power pigtail for control box
2.0625″ hole cut-out size, overall key pad size of 2.75″ x 2.75″
4.08″ clearance required from the back of the key pad’s mounting location
