Description

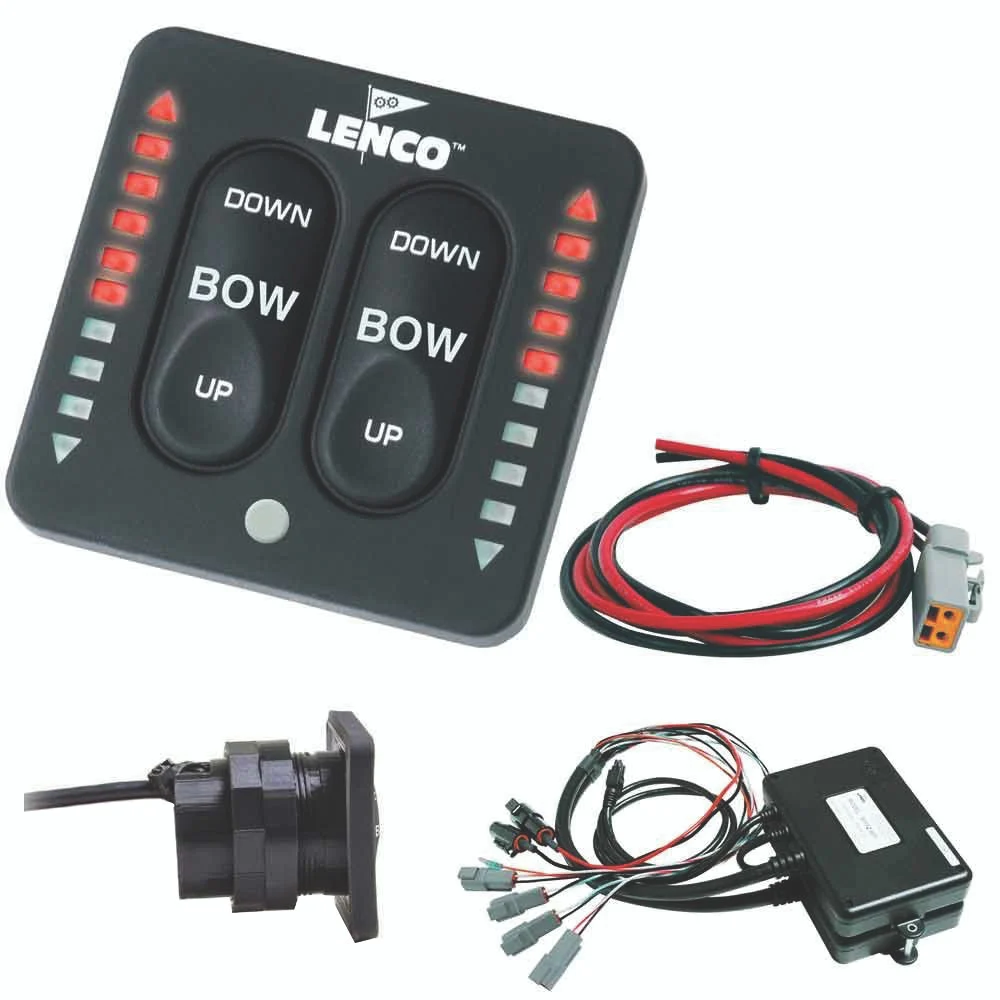

This all NEW LED tactile switch kit for dual actuator systems has a shortened bezel for consoles which require less depth to mount. Functionality is built into the separate control box and must be mounted in a remote location. 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times. Features: Built-in retractor, low profile design, 72″ power pigtail for control box, 2.0625″ hole cut-out size, overall key pad size of 2.75″ x 2.75″, 2.33″ clearance required from the back of the key pad’s mounting location, 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times, photo eye for optimum viewing in all light conditions and a backlit key pad for optimum viewing at night. ATTENTION: REPLACEMENT KEY PADS AND CONTROL BOXES THAT ARE FROM 2016 & PRIOR ARE NOT INTERCHANGEABLE WITH THIS SWITCH KIT.
2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
2.0625″ hole cut-out size, overall key pad size of 2.75″ x 2.75″
72″ power pigtail for control box
2.33″ clearance required from the back of the key pad’s mounting location
Photo eye for optimum viewing in all light conditions
