Description

Please call us to confirm availability.

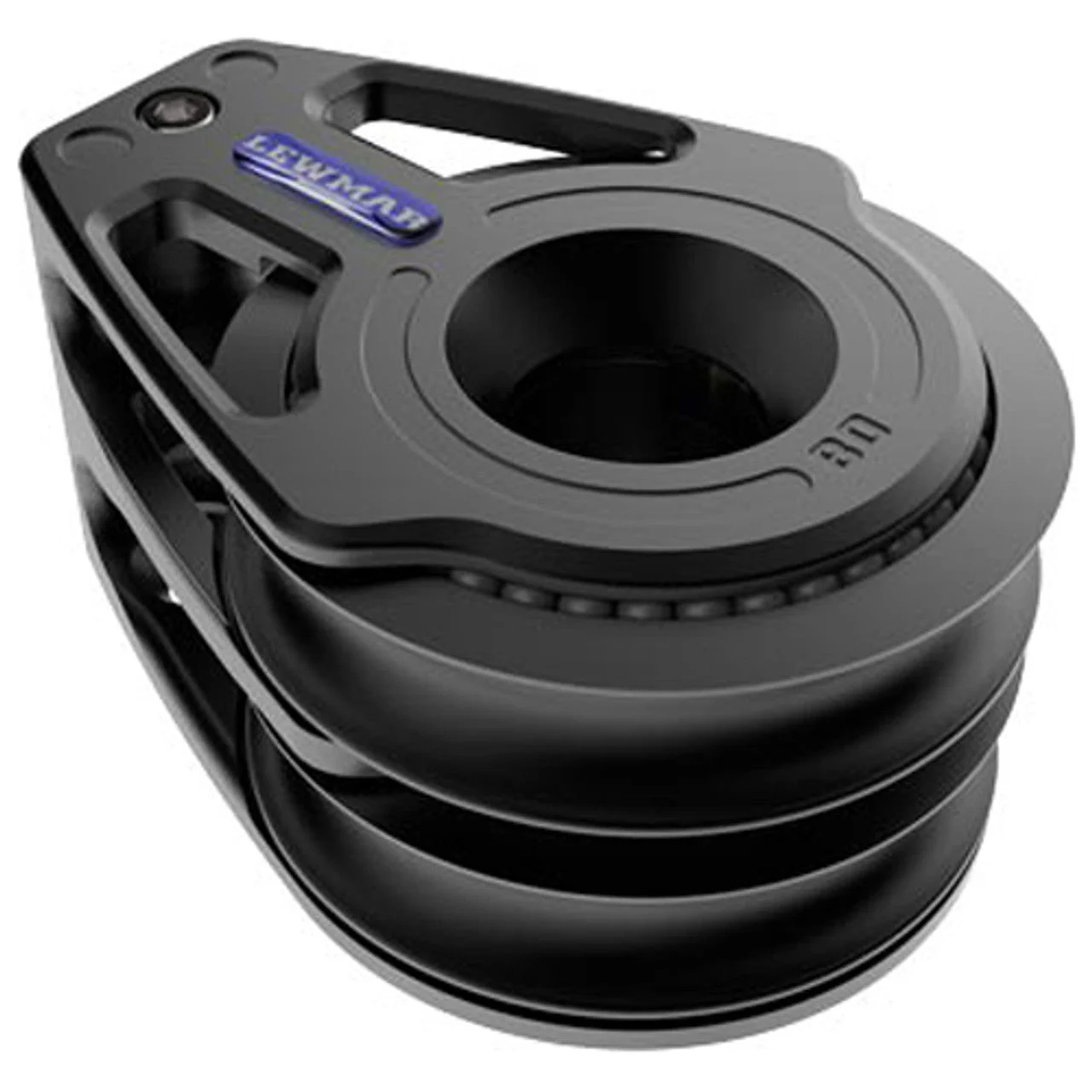

Lewmar’s High Load Racing Blocks represent the pinnacle of our standard block range. Manufactured from the best materials, they offer incredible strength to weight ratios.

Features

• Lockable head pin
• Highly efficient needle roller bearing system
• Delrin thrust balls
• Machined slots in cheeks for easy flushing of bearings
• 2nd Generation Racing blocks feature Lighter form with smoother edges
• Use standard, off the shelf fixing bolts
• Remove single screw in head to disassemble for servicing

Manufacturer part #: 29946102

Technical Description Features American Metric Safe Working Load 8250 lb 3750 kg Breaking Load 16500 lb 7500 kg Max line 9/16 in 14 mm Weight 30.8 oz 873 g Fixings 2xM10 2xM12 2xM10 2xM12 Sheave dia 105 mm 105 mm L 5 5/6 in 148 mm A 1 3/8 in 35 mm B 2/3 in 17.5 mm C 1 in 26.7 mm D 3- 3/4 in 95 mm E 1/2 in 13.6 mm F 1/2 in 13.6 mm
