Description

Please call us to confirm availability.

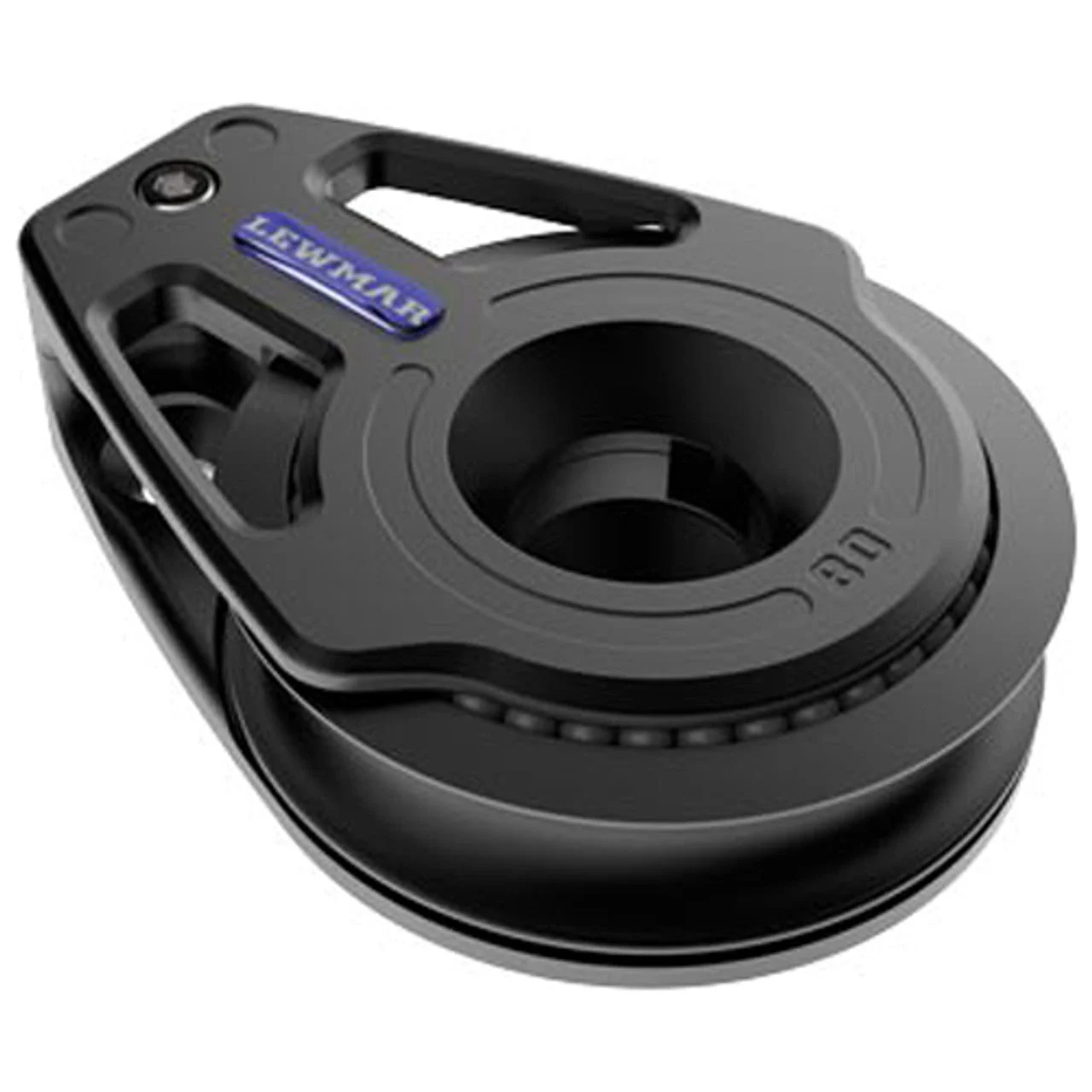

Lewmar’s High Load Racing Blocks represent the pinnacle of our standard block range. Manufactured from the best materials, they offer incredible strength to weight ratios.

Features

• Lockable head pin
• Highly efficient needle roller bearing system
• Delrin thrust balls
• Machined slots in cheeks for easy flushing of bearings

2nd Generation Racing blocks features:

• Lighter form with smoother edges
• Use standard, off the shelf fixing bolts
• Remove single screw in head to disassemble for servicing

Manufacturer part #: 29946151

Technical Description Features American Metric Safe Working Load 16500 lb 7500 kg Breaking Load 33000 lb 15000 kg Max line 11/16 in 18 mm Weight 52.2 oz 1476 g Fixings 2xM12 2xM16 2xM12 2xM16 Sheave dia 155 mm 155 mm L 8- 1/2 in 216 mm A 2- 1/8 in 54 mm B 1 in 27 mm C 2 in 50 mm D 5- 3/7 in 138 mm E 4/5 in 20 mm F 4/5 in 20 mm
