Description

Please call us to confirm availability.

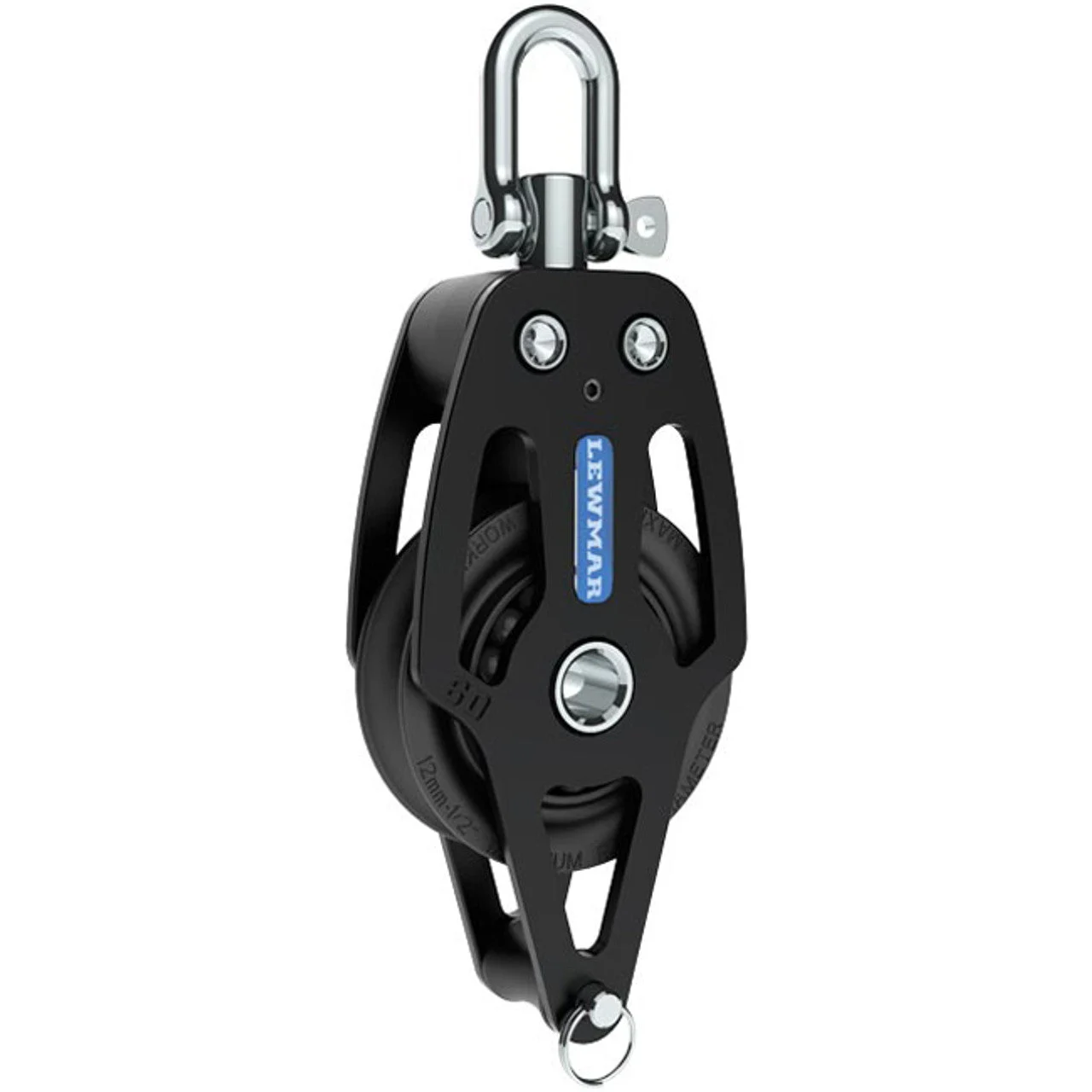

Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.

Features

• Strong aluminium side cheeks
• Central plain bearing for efficiency at high loads
• Side thrust delrin ball bearings
• Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism

Manufacturer part #:29195004

Technical Description Features American Metric Line Size 3/8 in 10 mm Working Load Limit 1762 lb 800 kg Breaking Load 3524 lb 1600 kg Weight 5.3 oz 150 g
