Description

Please call us to confirm availability.

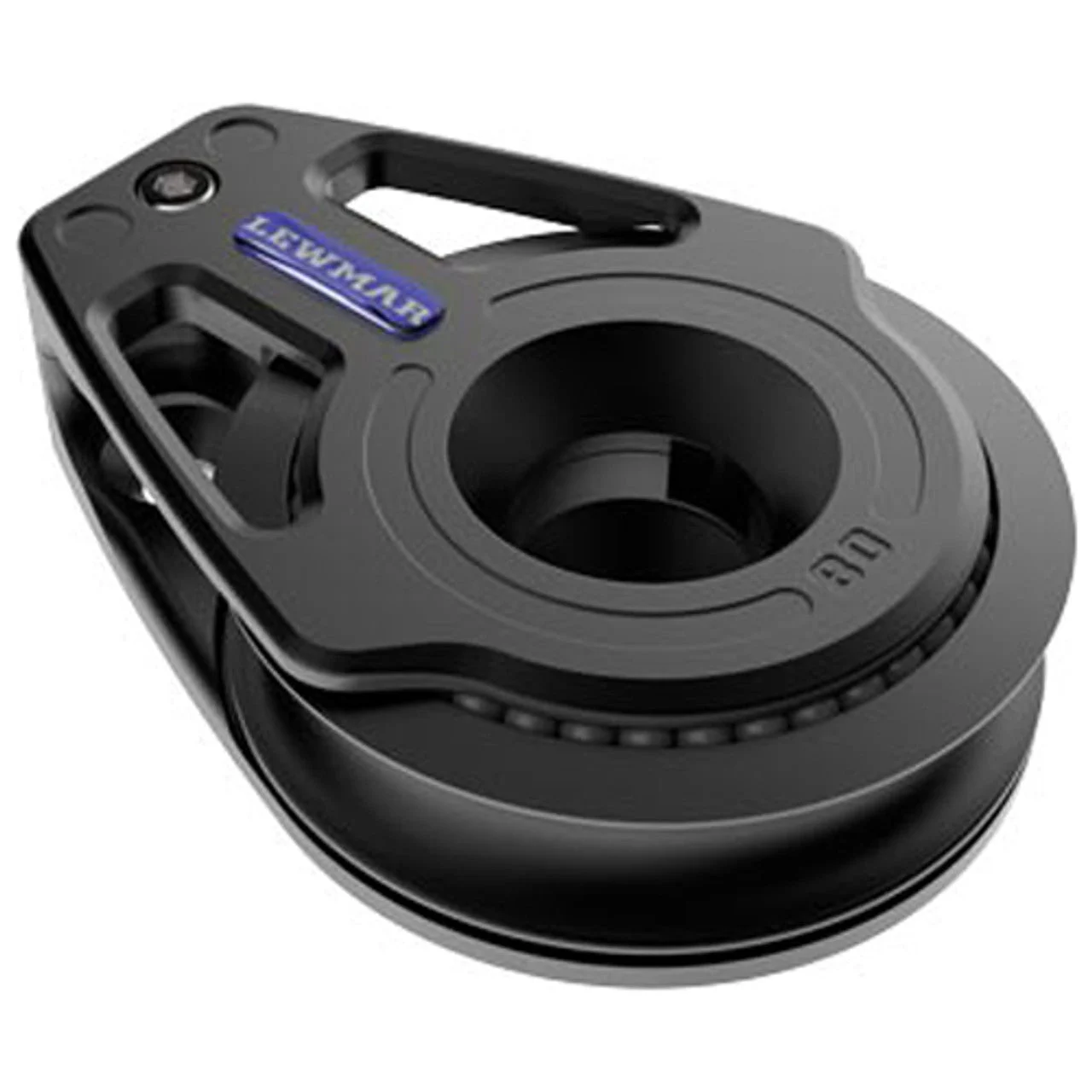

Lewmar’s High Load Racing Blocks represent the pinnacle of our standard block range. Manufactured from the best materials, they offer incredible strength to weight ratios.

Features

• Lockable head pin
• Highly efficient needle roller bearing system
• Delrin thrust balls
• Machined slots in cheeks for easy flushing of bearings

2nd Generation Racing blocks features:

• Lighter form with smoother edges
• Use standard, off the shelf fixing bolts
• Remove single screw in head to disassemble for servicing

Manufacturer part #: 29946611

Technical Description Features American Metric Safe Working Load 3080 lb 1400 kg Breaking Load 6160 lb 2800 kg Max line 1/2 in 12 mm Weight 4.7 oz 132 g Fixings 2xM6 1xM10 2xM6 1xM10 Sheave dia 60 mm 60 mm L 3 1/3 in 85 mm A 4/5 in 20 mm B 2/5 in 10 mm C 5/8 in 16 mm D 2- 1/6 in 55 mm
