Description

Please call us to confirm availability.

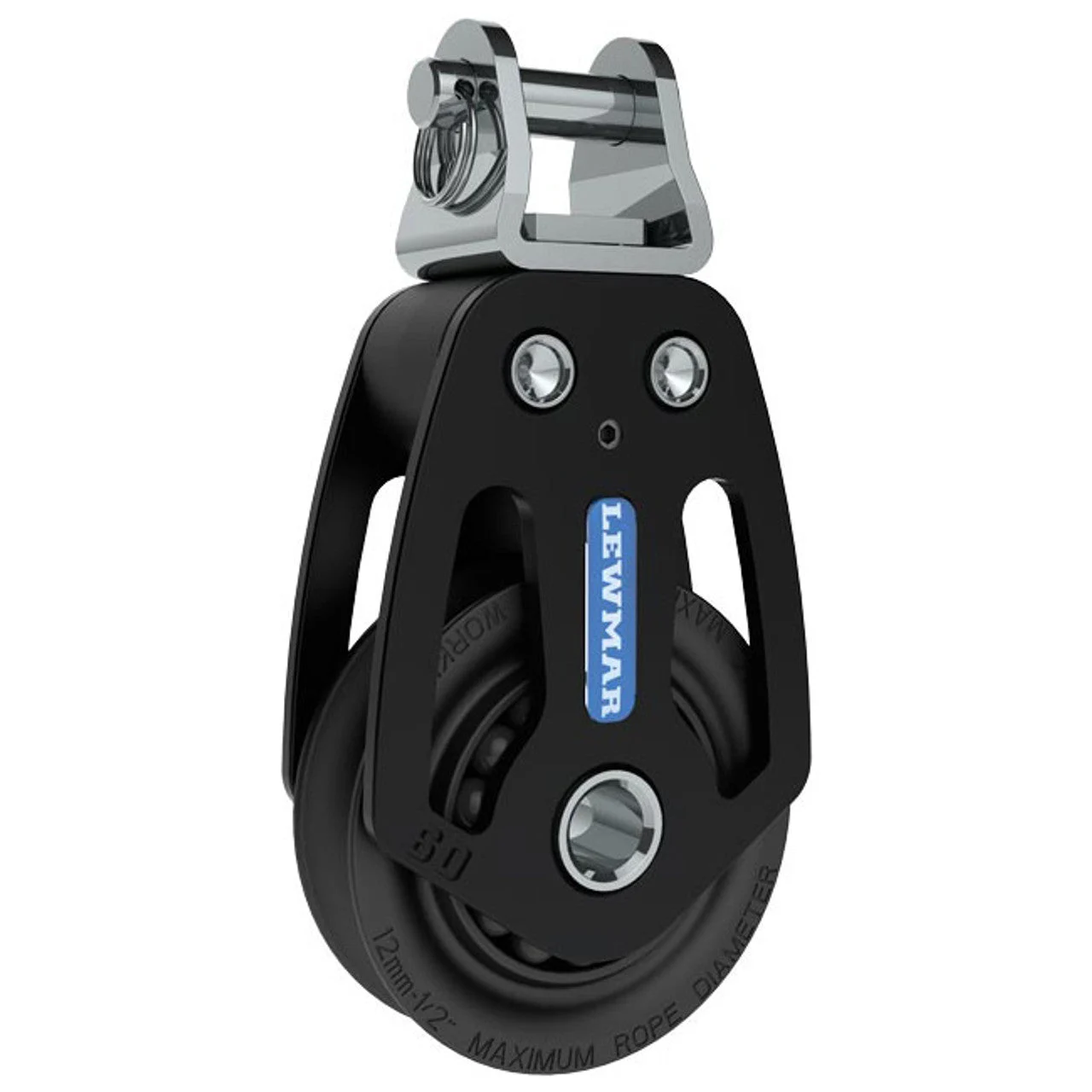

Years of design and manufacturing experience, combined with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quiality materials, providieng enhanced reliability. ideal for frequiently adjusted, highly loaded systems using modern line technology and reduced line diameters.

Features

• Strong aluminium side cheeks
• Central plain bearing for efficiency at high loads
• Side thrust delrin ball bearings
• Toggle head designed to fit on the studs commonly found at mast bases

Manufacturer part #:29196021

Technical Description Features American Metric Line Size 1/2 in 12 mm Working Load Limit 2422 lb 1100 kg Breaking Load 4845 lb 2200 kg Weight 7.9 oz 227 g A 11/16 in 18 mm B 5/16 in 8 mm C 3/8 in 10 mm
