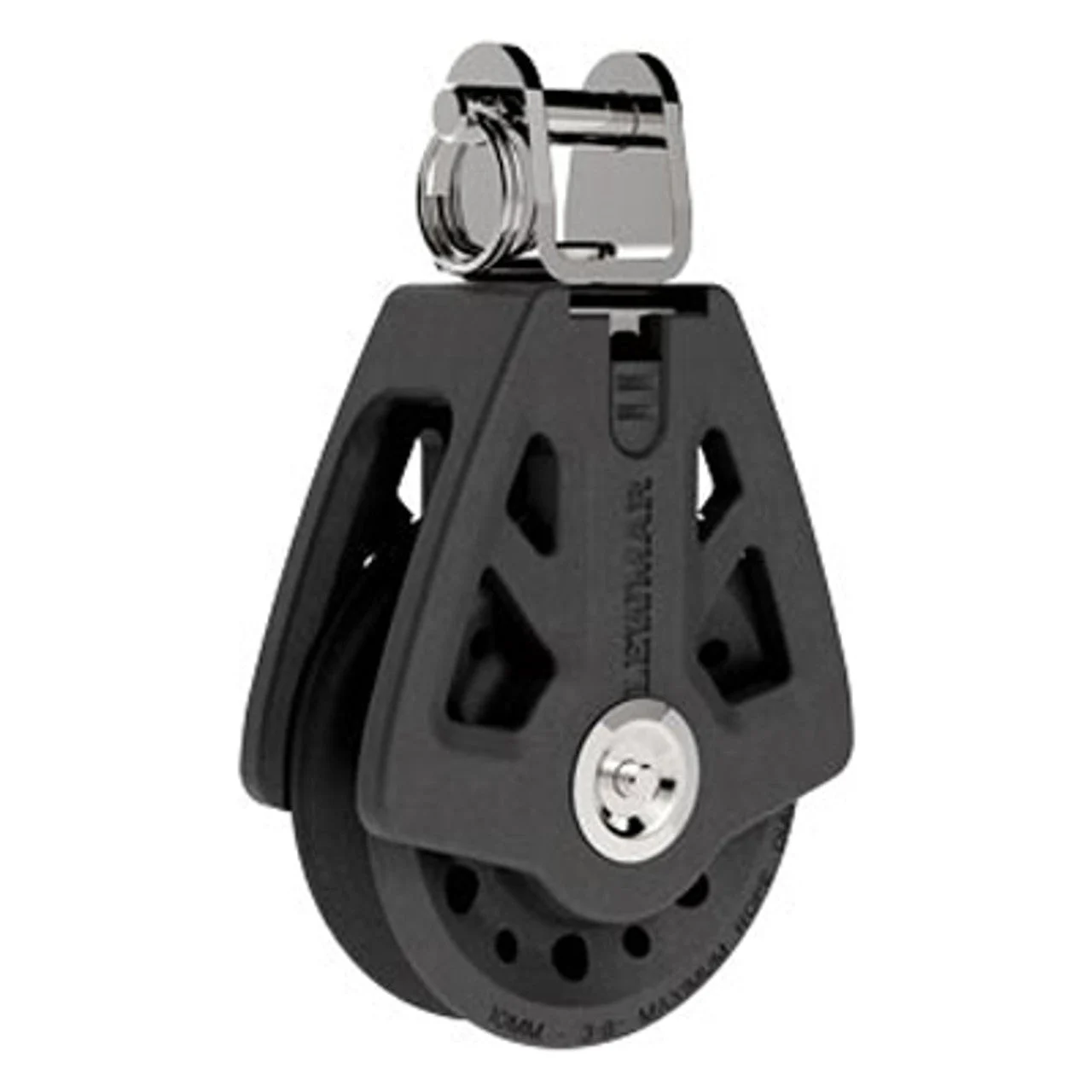

Lewmar’s Synchro Blocks are engineered for speed, efficiency and superior handling. We use a combination of scientifically optimised block geometry, a free-spin bearing and self-aligning head to reduce friction and increase efficiency by up to 40% over budget blocks on mainsheet systems.

Each component is perfectly synchronised with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.

Manufacturer part #: 29929021BK

Features

• Stainless steel strap for improved strength and longer service life
• Stiff glass fibre reinforced cheeks to prevent lines from wedging

Applications

Plain bearing blocks are typically used for heavy and static loads in:

• Halyard tuning
• Mainsheet systems
• Mast foot blocks
• Mast head blocks
• Boom vang

The toggle heads of the halyard blocks are designed to fit on the studs commonly found at mast bases – check the diameter of the stud against the width of the block jaws and pin diameter.

Technical Description Features American Metric Sheave Ø 90 90 Safe Working Load 4400 lb 2000 kg Optimum Line Size 1/2 in 12 mm Max Line Size 9/16 in 14 mm Weight 14.57 oz 414 g A- Width 29/32 in 23 mm B- Pin Ø 25/64 in 10 mm C- Space to pin 17/32 in 13.9 mm
