Description

Please call us to confirm availability.

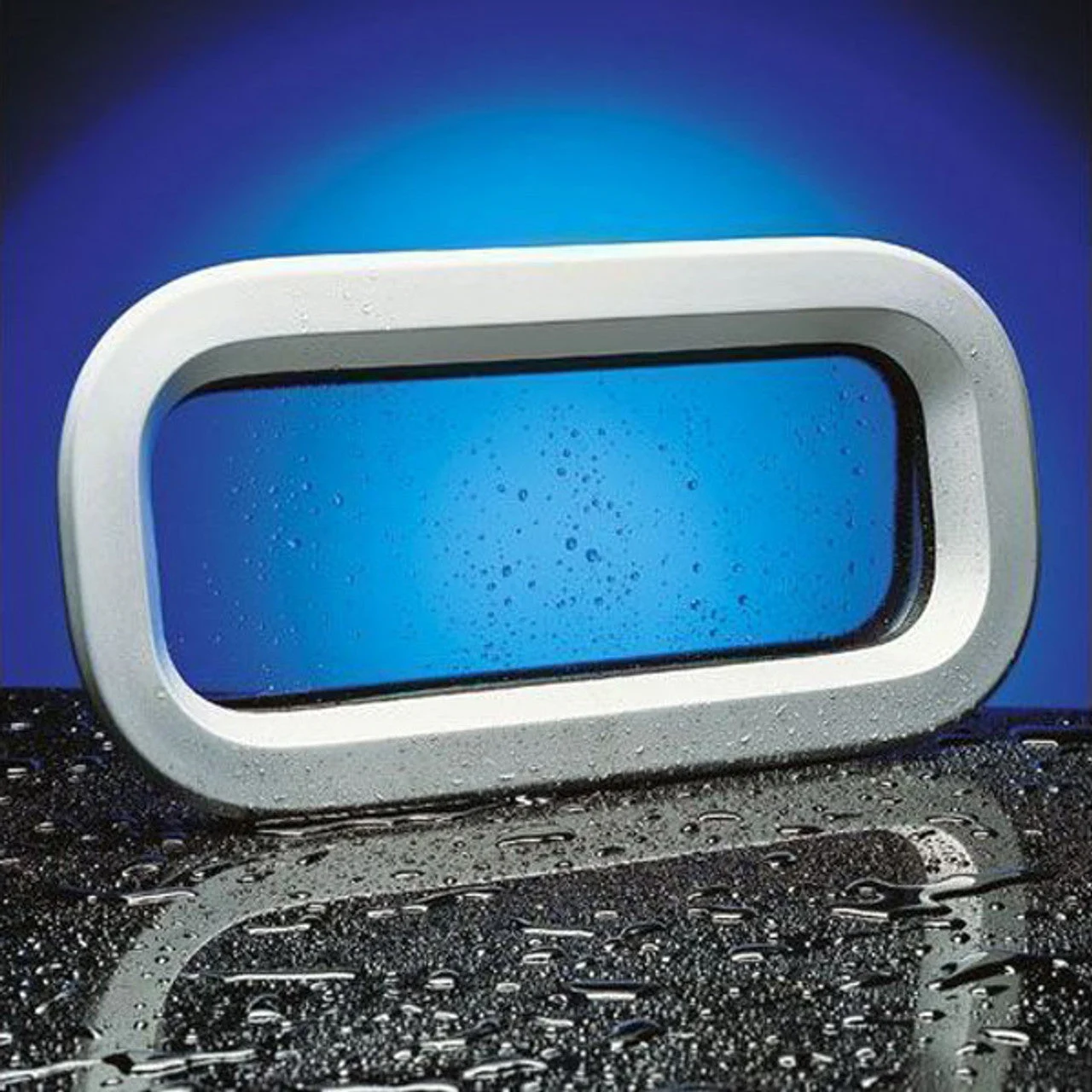

The Atlantic Portlight has clean lines and a clear, acrylic window housed in an attractive aluminium frame.

• Extensive range
• Flyscreens provided as standard
• Friction hinges
• Screw handles available as an option
• Full range of spare parts available

Manufacturer part #: 39132090

Technical Description Features American Metric Hull Valance Thin Thin Version Opening Opening Acrylic Colour Smoke Grey Smoke Grey Frame Colour Silver Silver Hatch Weight 4.6 in 2.1 kg Acrylic Window Thickness 5/16 in 8 mm Overall Width X 7- 7/8 in 200 mm Overall Length Y 15 3/4 in 400 mm Overall Height Z 1/4 in 6 mm Overall Radii R 3- 15/16 in 100 mm Cut-Out Width X1 7- 1/16 in 180 mm Cut-Out Length Y1 14- 15/16 in 380 mm Cut-Out Radii R1 3- 9/16 in 90 mm
