Description

Please call us to confirm availability.

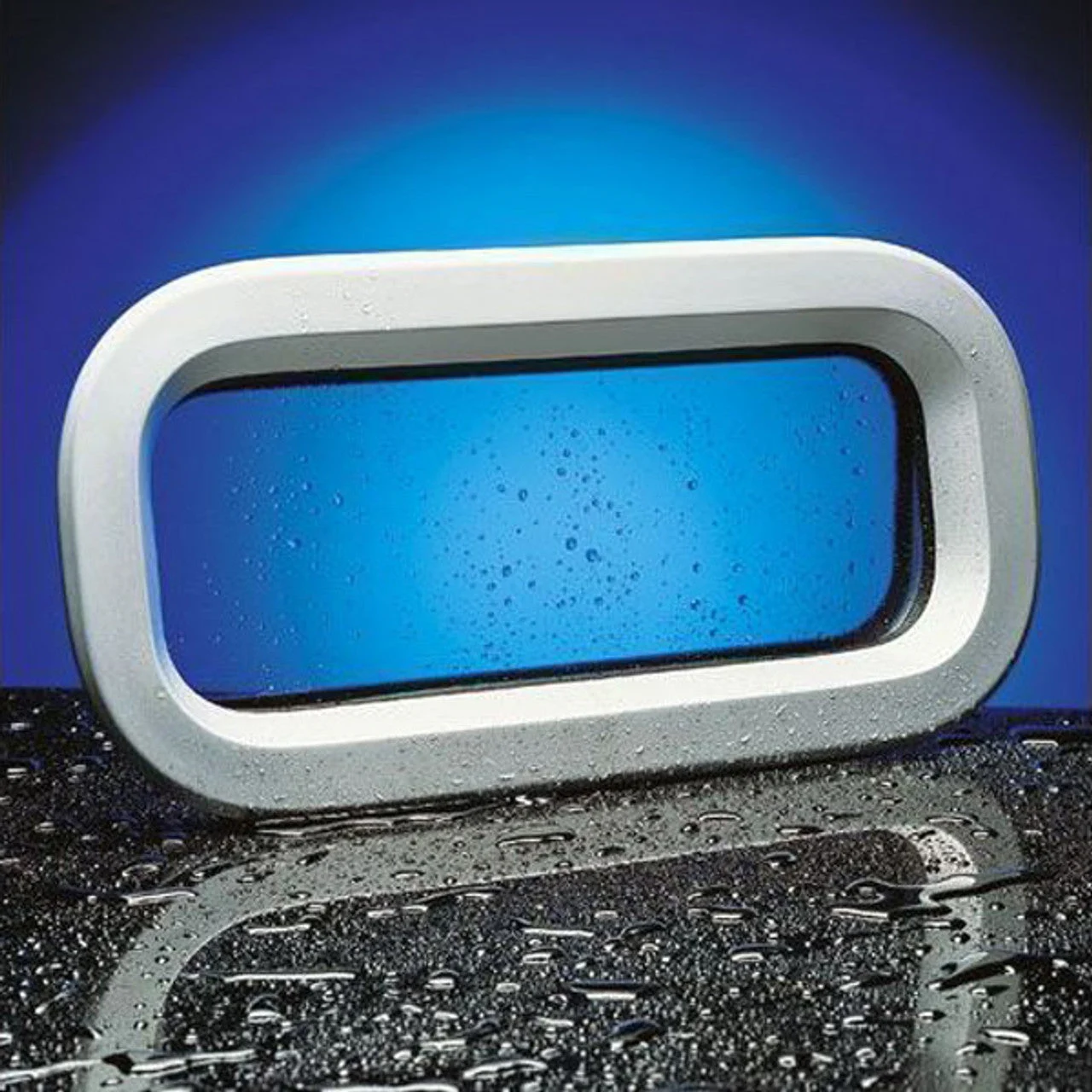

The Atlantic Portlight has clean lines and a clear, acrylic window housed in an attractive aluminium frame.

• Extensive range
• Flyscreens provided as standard
• Friction hinges
• Screw handles available as an option
• Full range of spare parts available

Manufacturer part #: 39160090

Technical Description Features American Metric Hull Valance Thin Thin Version Opening Opening Acrylic Colour Smoke Grey Smoke Grey Frame Colour Silver Silver Hatch Weight 6.6 in 3 kg Acrylic Window Thickness 5/16 in 8 mm Overall Width X 7- 7/8 in 200 mm Overall Length Y 23- 5/8 in 600 mm Overall Height Z 1/4 in 6 mm Overall Radii R 2-13/16 in 71 mm Cut-Out Width X1 7- 1/16 in 180 mm Cut-Out Length Y1 22- 13/16 in 580 mm Cut-Out Radii R1 2- 3/8 in 61 mm
