Description

Please call us to confirm availability.

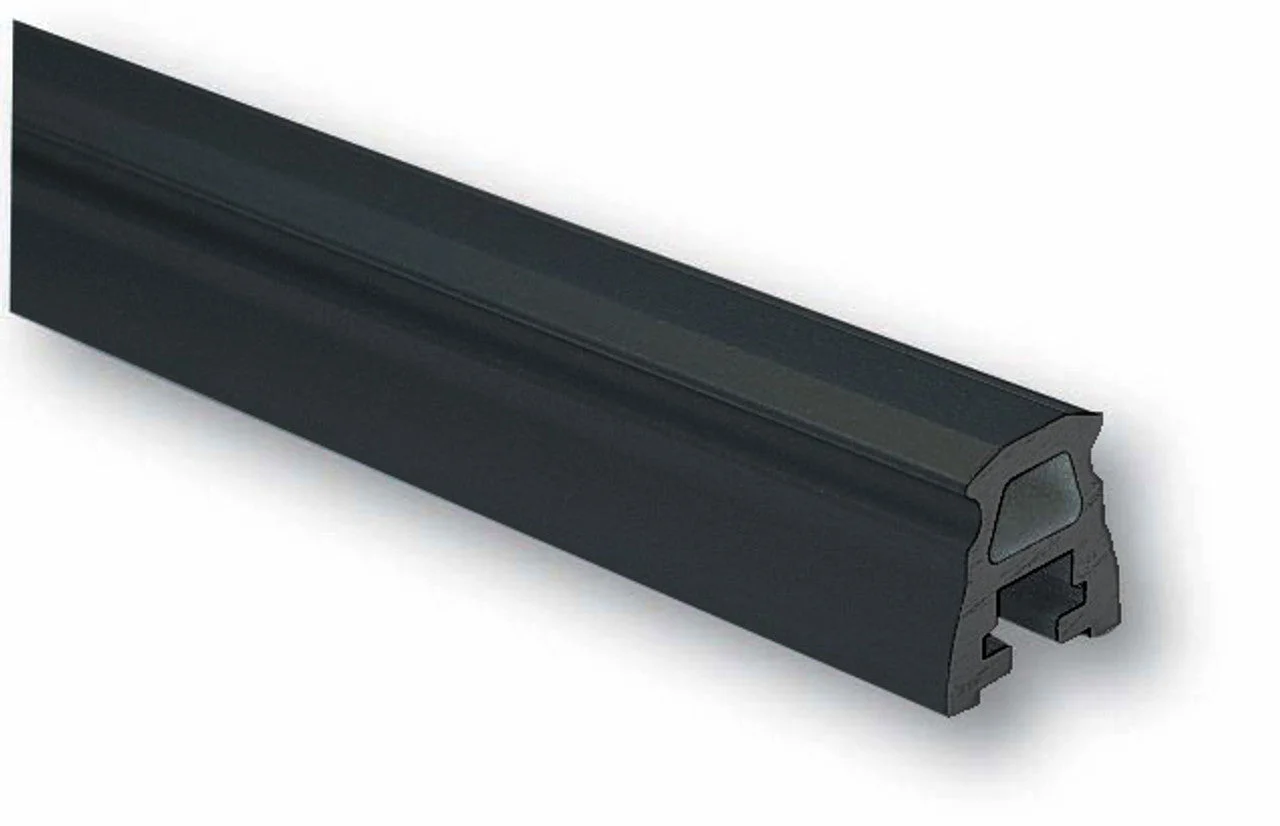

Beam track is available from size 0 to 3 and is used when spanning cockpits and across companion way hatches.

Three fixing bolts should always be used either side of the span and washers fitted under the head of the bolt and between track and deck.

Please note that some beam tracks can only use metric fasteners. The moment of inertia is used to calculate the stiffness of material section.

All track is extruded from Aluminum 6082T6.

Three fixing bolts should always be used either side of the span and washers fitted under the head of the bolt and between track and deck.

Manufacturer part #:29162315BK

Technical Description Features American Metric Weight 54.91 oz 1560 g Max safe Working Load of car 3300 lb 1500kg Max span between Fixings 31 in 800 mm Moment of inertia 68574 mm4 68574 mm4 Fixings 3/8″ Hex Hd M10 H 1.38 in 35 mm W 1.38 in 35 mm length 4ft 11in 1.5 m
