Description

Please call us to confirm availability.

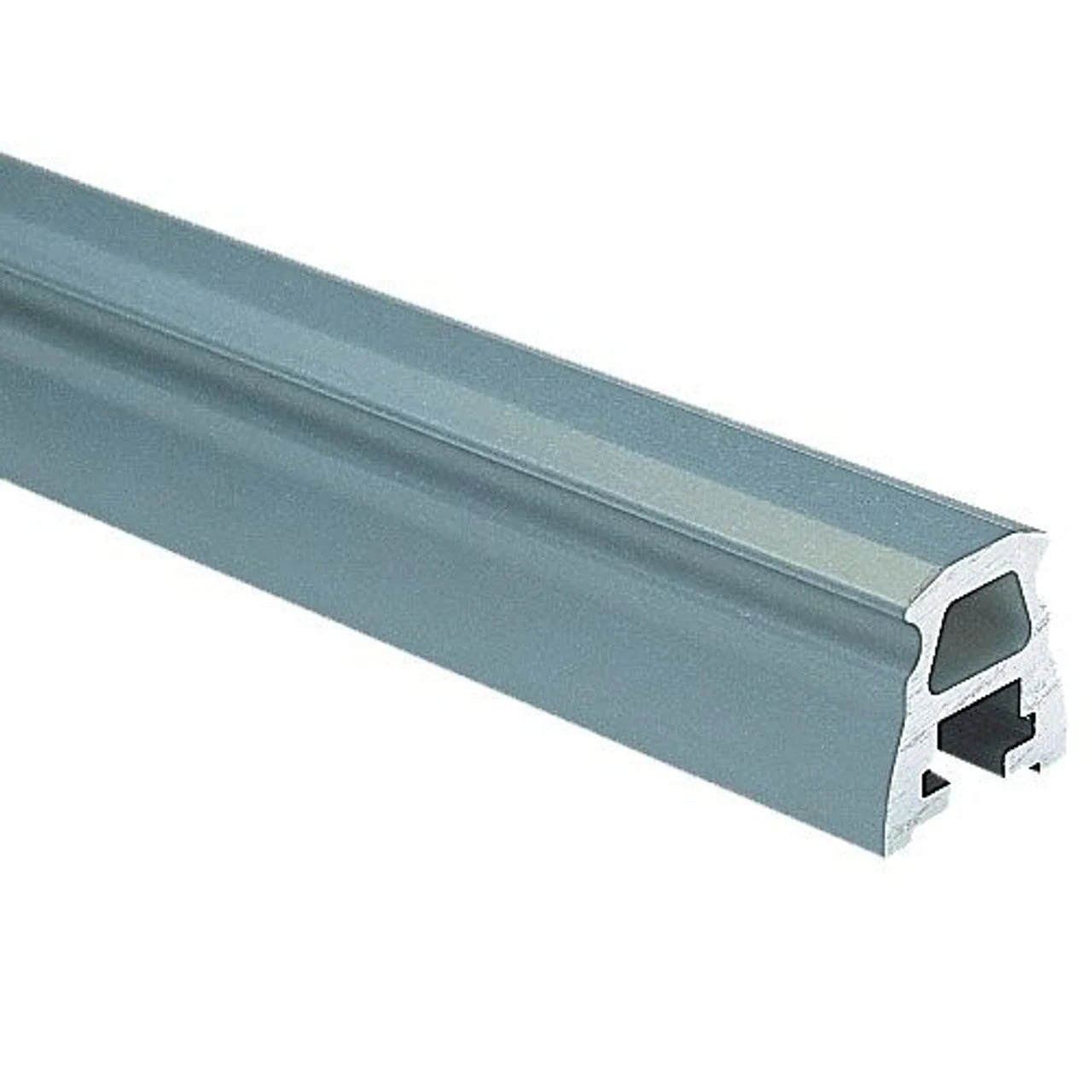

Beam track is available from size 0 to 3 and is used when spanning cockpits and across companion way hatches.

Three fixing bolts should always be used either side of the span and washers fitted under the head of the bolt and between track and deck.

Please note that some beam tracks can only use metric fasteners. The moment of inertia is used to calculate the stiffness of material section.

All track is extruded from Aluminum 6082T6.

Three fixing bolts should always be used either side of the span and washers fitted under the head of the bolt and between track and deck.

Manufacturer part #:29163320BK

Technical Description Features American Metric Weight 128.13 oz 3640 g Max safe Working Load of car 5180 lb 2350 kg Max span between Fixings 35 in 900 mm Moment of inertia 343124 mm4 343124 mm4 Fixings Hex Hd M12 Hex Hd M12 H 2 in 50 mm W 2- 3/16 in 55 mm Length 6’7″ ft 2 m
