Description

Please call us to confirm availability.

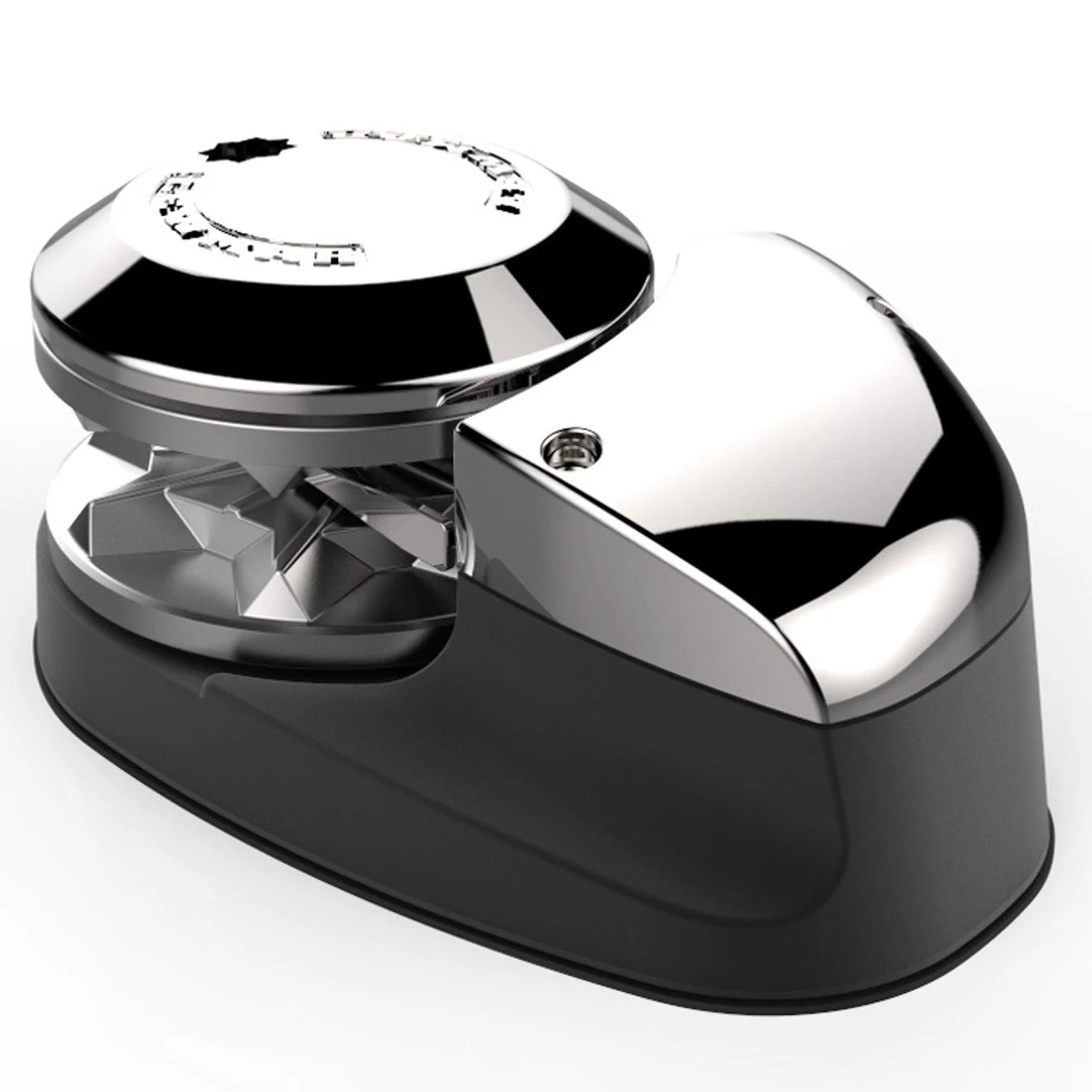

Lewmars C Series Capstans provide almost effortless rope control at the press of a footswitch. The WARP (Wear and Abrasion Resistant Pattern) finished drum optimizes performance and reduces rope wear by up to 30%. Stainless steel components combine strength, anti-corrosion and durability with a beautiful, polished finish. Installation of the C3 is quick and simple, as it is fastened entirely from above deck. This innovation cuts installation time by 35%.

Features

• Beautifully crafted stainless steel components ensure enduring strength and performance
• WARP finish drum – unique Wear and Abrasion Resistant Pattern reduces rope wear by 30%

Manufacturer part #: 6630331312

Technical Description Features American Metric Motor Power 1000W 1000W Max Pull 1870 lbs 750 Kg Working Load -470 lbs -188 Kg Max Line Speed 39 ft/min 12 m/min Normal Current Draw (A) 65A 65A Circuit Breaker (A) 70A 70A Weight 26 lbs 12 Kg A 3- 1/8 in 80 mm B 6-1/2 in 165 mm D 3- 9/16 in 90 mm H1 5- 3/8 in 137 mm H2 7-5/8 in 194 mm
