Description

Please call us to confirm availability.

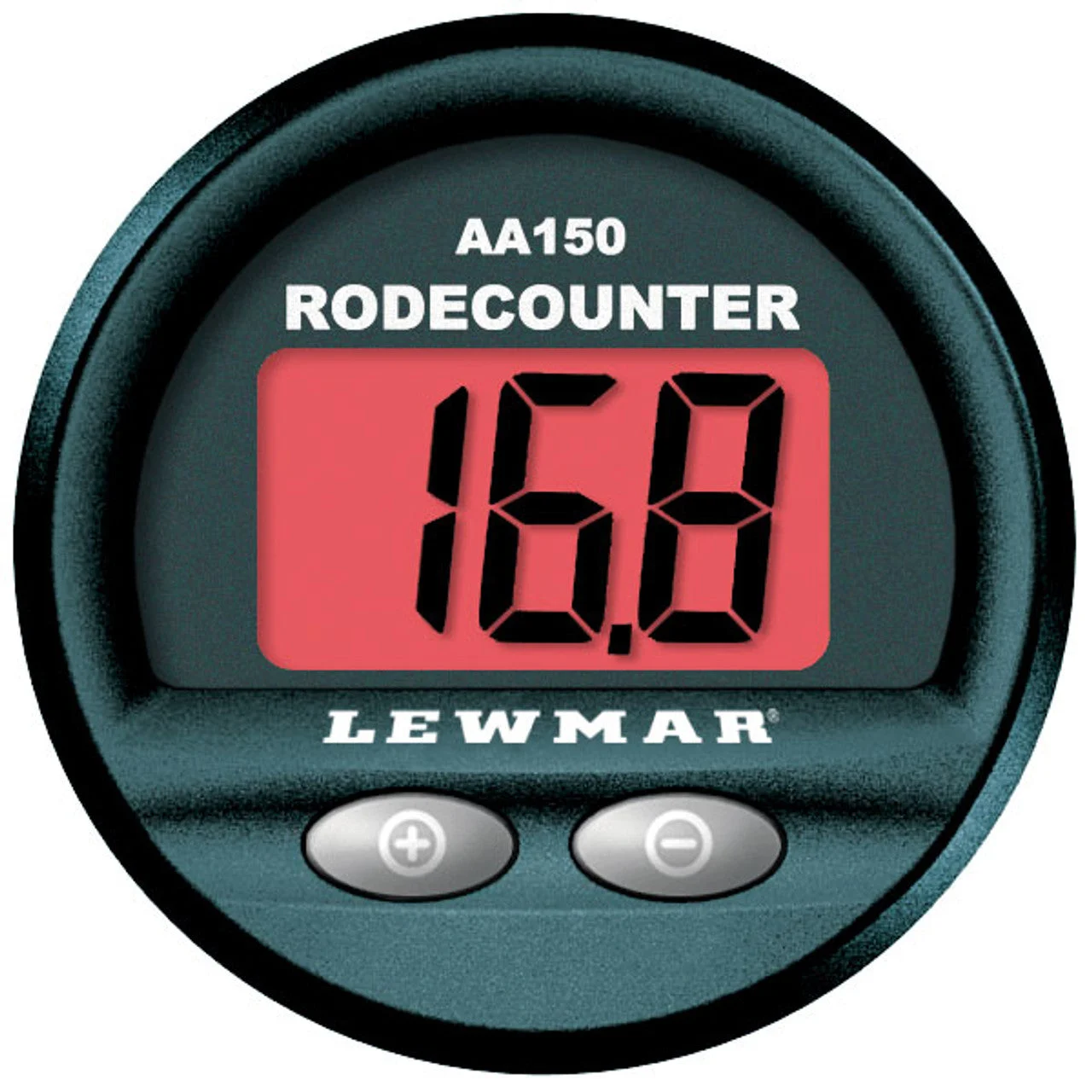

The AA150 rode counter (chain counter) displays the length of rode deployed through the windlass. Fits any windlass

Features:

• LCD display shows at a glance how much anchor rode is out.
• Docking alarm sounds when the anchor is close to docking.
• Adjustable red backlighting ensures clear night viewing
• Choice of feet or metres rode measurement
• Easy installation and set up
• Plug and play AA sensor installation
• Works with rope/chain or all-chain rode.
• Use with DC, AC and hydraulic windlasses
• Install up to 2 units or combine with the AA560, AA710 or AA300 series for multiple stations on the boat
• Standard 60mm (2.36″) marine instrument console

Kit Includes: 1 console unit, 1 grey sensor, 3 magnets ( 6mmx4mm, 8mmx6mm, 10mm x 8 mm), load sensing connectors, installation and operation instructions

Manufacturer part #: 66830014

Technical Description Features American Metric Power Supply 12 or 24V DC 12 or 24V DC Current Consumption 30mA 30mA Temperature Range -23F to 140F(-5C to 60C) -23F to 140F(-5C to 60C) Max Voltage 30V 30V DC EMC Protection/CE EN60945 EN60945
