Description

Please call us to confirm availability.

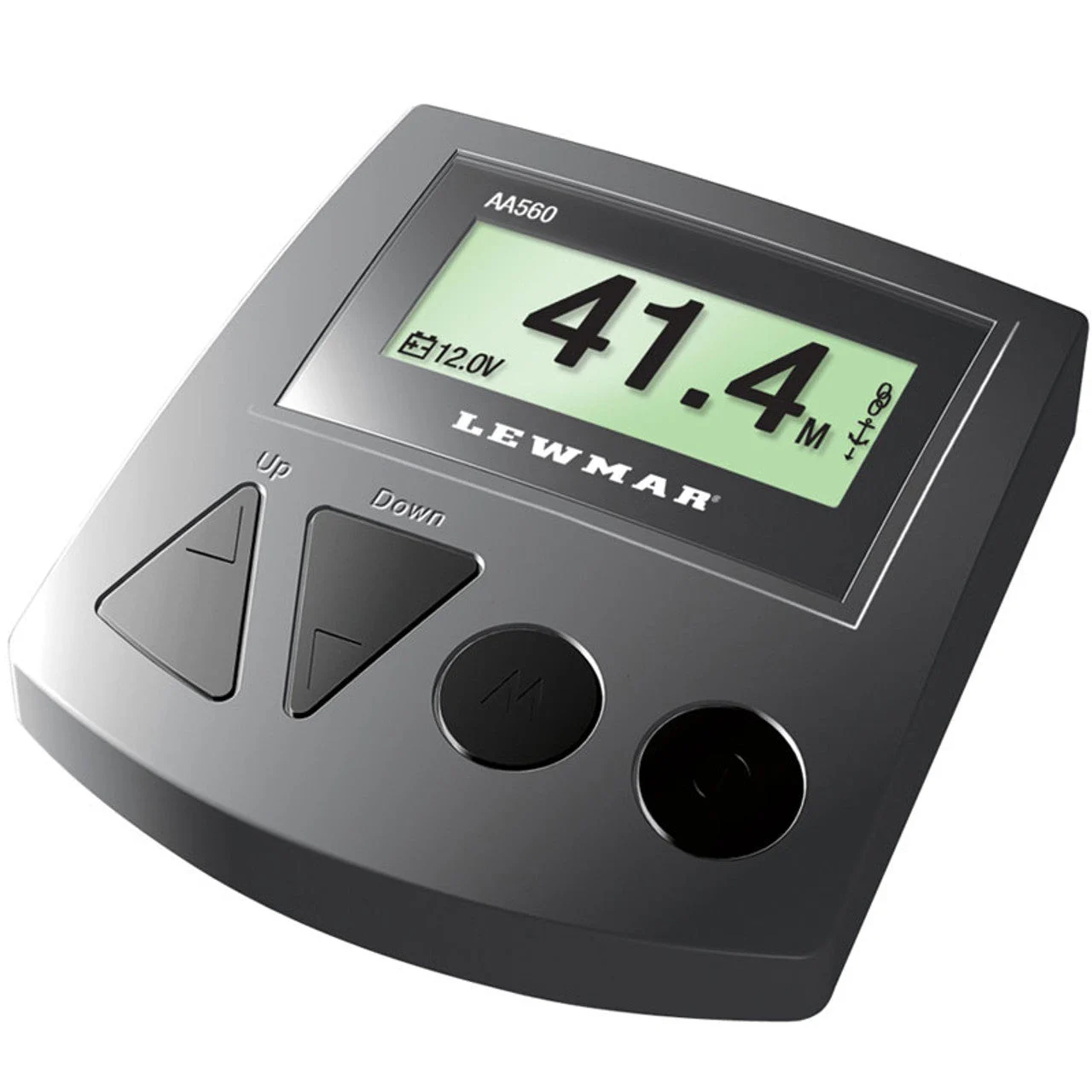

Controls the windlass from the helm station and shows at a glance how much anchor rode is deployed.

Features:

• ” One touch” automatic function deploys and retrieves a preset length of anchor rode making anchoring easier and safer
• Docking alarm and pre-set stopping point help protect the boat during anchor retrieval
• Use with DC, AC and hydraulic windlasses
• Install up to 2 units or combine with the AA150, AA710 or AA300 series for multiple stations on the boat
• The AA570 wireless panel-mount rode counter is a wireless version of the AA560

AA560 Kit includes

• Console with sensor plug and fastening kit
• Grey sensor with 2m sensor cable and plug (Use for all-chain or rope/ chain installations)
• Magnet (10mm x 8mm)
• Motor load sensor terminators (Use for rope/chain installations)
• Installation instructions and user manual

Manufacturer part #: 66830015

Technical Description Features American Metric Power Supply 12 or 24V DC 12 or 24V DC Current Consumption 70mA 70mA Temperature Range -5 degC to 60 degC -5 degC to 60 degC Max current draw 4 A 4 A Max Voltage 30V 30v EMC Protection/CE EN60945 EN60945
