Description

Please call us to confirm availability.

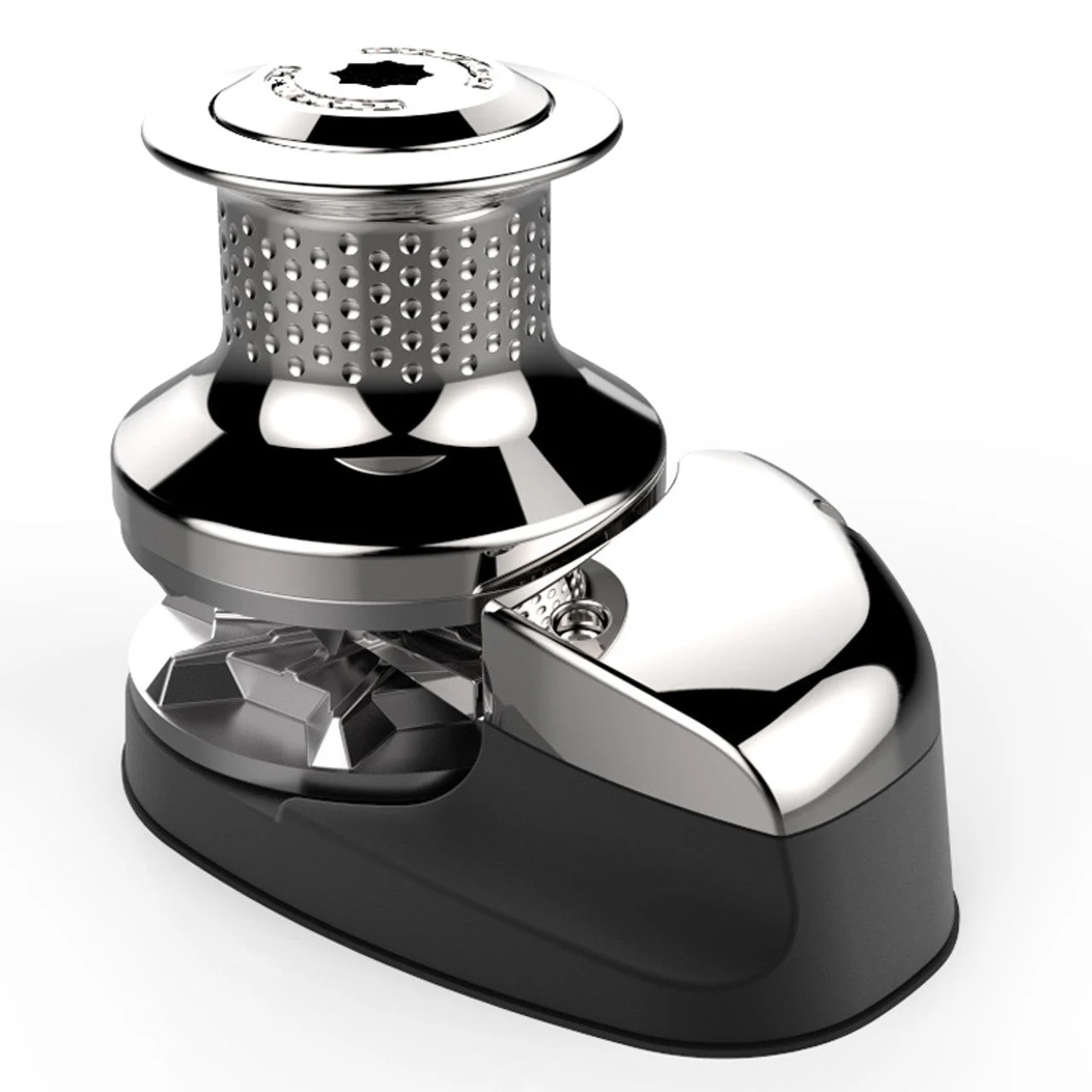

The CPX3 features tried and tested worm-wheel gearbox architecture and uses quality materials throughout – hard anodised aluminium for the base and cast stainless steel for the gypsy top cap and chain pipe cover.

• Lightweight design
• 700 & 900W motors
• Highly reliable gearbox design

This set contains:

• Windlass X Handle
• Circuit Breaker 90 Amp 9327
• Guarded Rocker Switch
• Cpx2 12v Mgb Plus Contactor
• Cpx 002 Gypsy Assembly

Manufacturer part #: 6672021002

Technical Description Features American Metric Motor Power (W) 700 700 Max Pull 1433 lbs 650 Kg Working Load -358 lbs -163 Kg Max Line Speed 69 ft/min 21 m/min Normal Current Draw (A) 80 80 Circuit Breaker (A) 90 90 Approx Weight 43 lbs 20 Kg
