Description

Please call us to confirm availability.

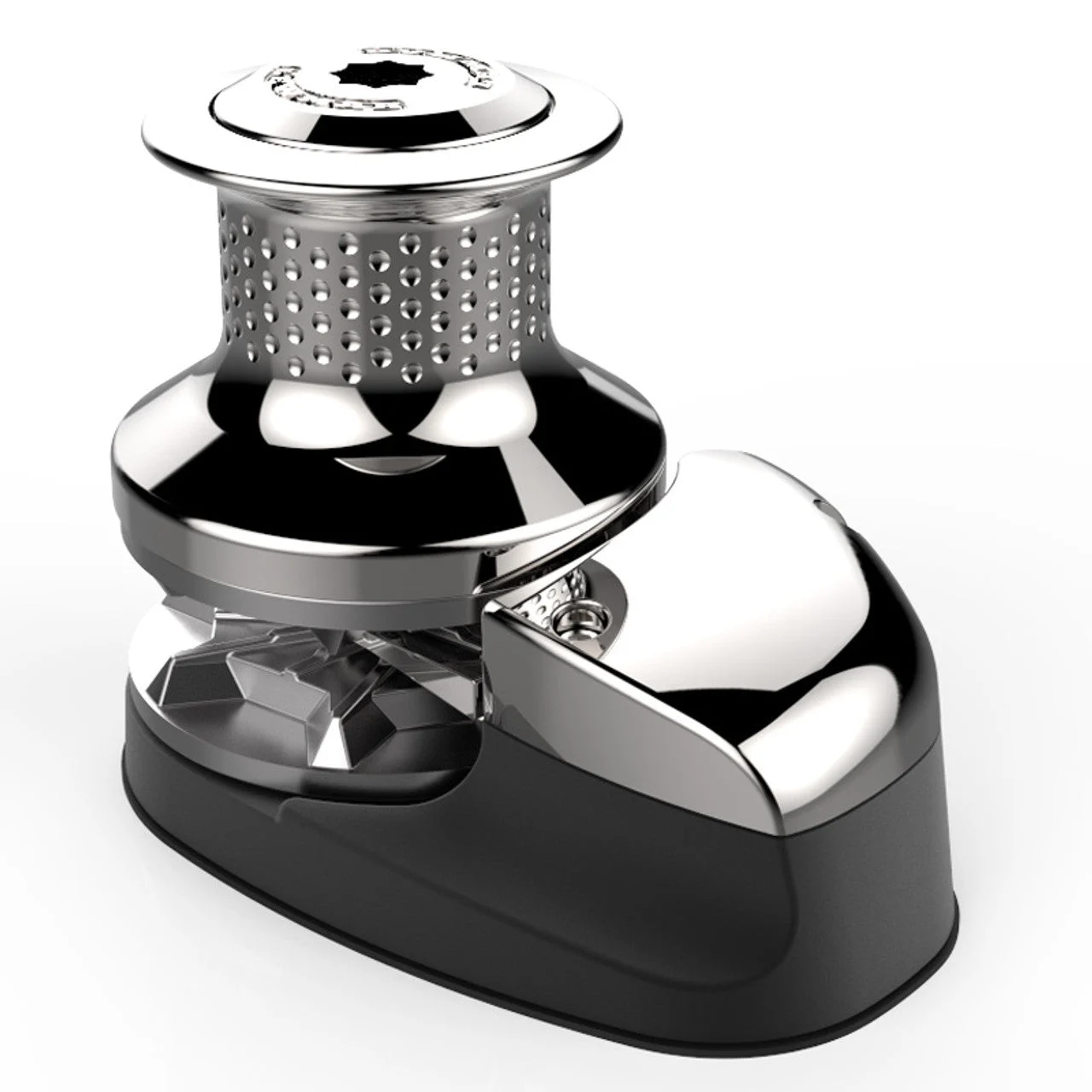

The CPX3 features tried and tested worm-wheel gearbox architecture and uses quality materials throughout – hard anodised aluminium for the base and cast stainless steel for the gypsy top cap and chain pipe cover.

• Lightweight design
• 700 & 900W motors
• Highly reliable gearbox design

Manufacturer part #: 6672022002

Technical Description Features American Metric Motor Power (W) 700 700 Max Pull 1675lbs 760Kg Working Load -396 lbs -180 Kg Max Line Speed 79 ft/min 24 m/min Normal Current Draw (A) 80 80 Circuit Breaker (A) 90 90 Approx Weight 38.5 lbs 17.5 Kg
