Description

Please call us to confirm availability.

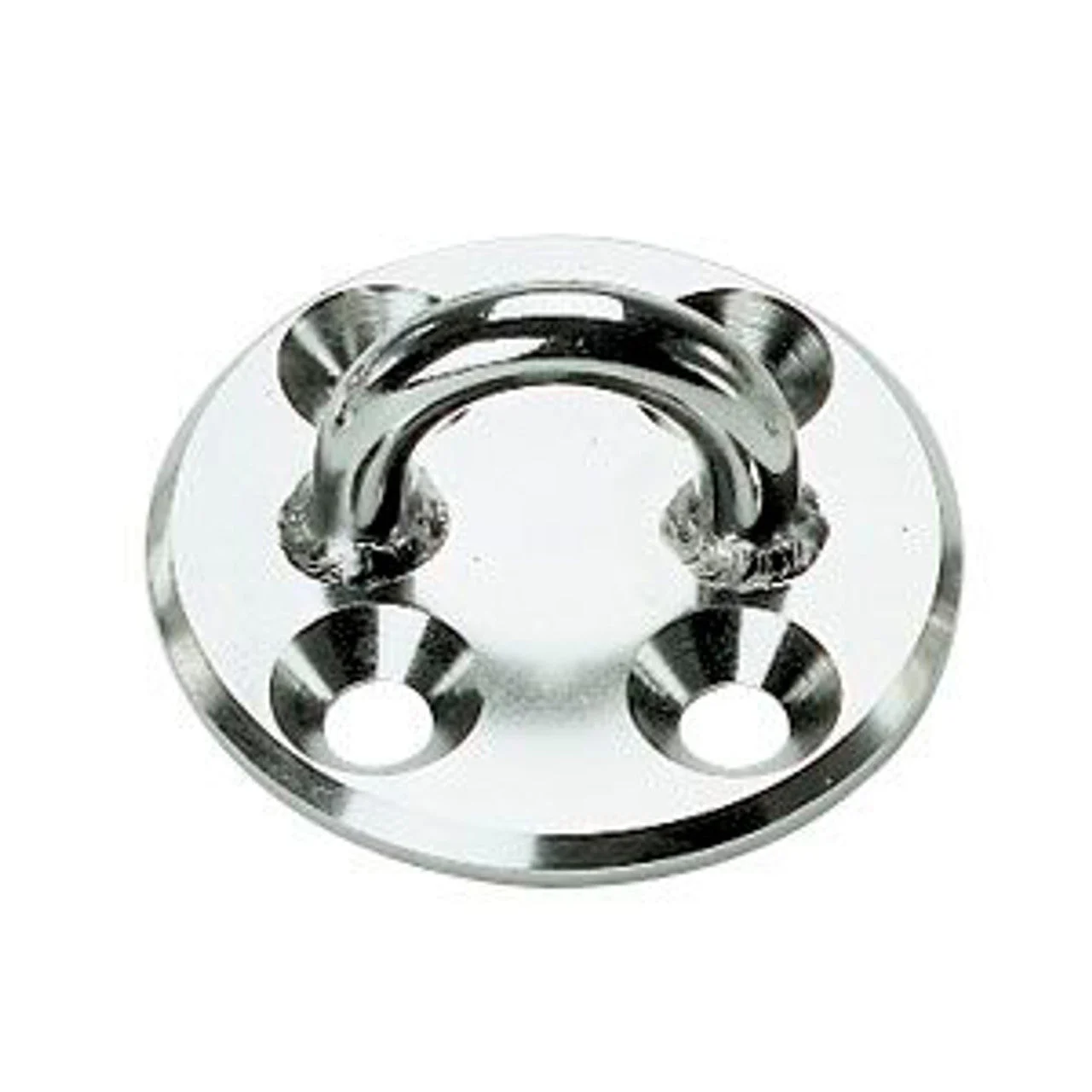

Lewmar pad-eyes are designed for leisure marine use and for fixing blocks or similar equipment to the deck. Their performance depends heavily on the specific application and suitability of installation. Care must be taken during installation that the pad eye is suitably aligned to the expected load. The load direction should be as close to perpendicular with the base as possible. This will maximise the working load of the pad eye. In addition, the load should be as close to parallel with the bail as possible. For more information on the deflection effect on force applied refer to the product manuals.

Manufacturer part #: 29904060

Technical Description Features American Metric Safe Working Load 7055 lb 3200 kg Breaking Load 14110 lb 6400 kg Weight 5.4 oz 154 g Bar Dia 3/8 in 10 mm Base Dia 2 5/8 in 66 mm A 2 19/32 in 66 mm B 1 5/16 in 33 mm C 2 3/32 in 18 mm D 1- 11/32 in 34 mm E 1- 3/32 in 28 mm Fixings 4×5/16 in 4xM8 mm
