Description

Please call us to confirm availability.

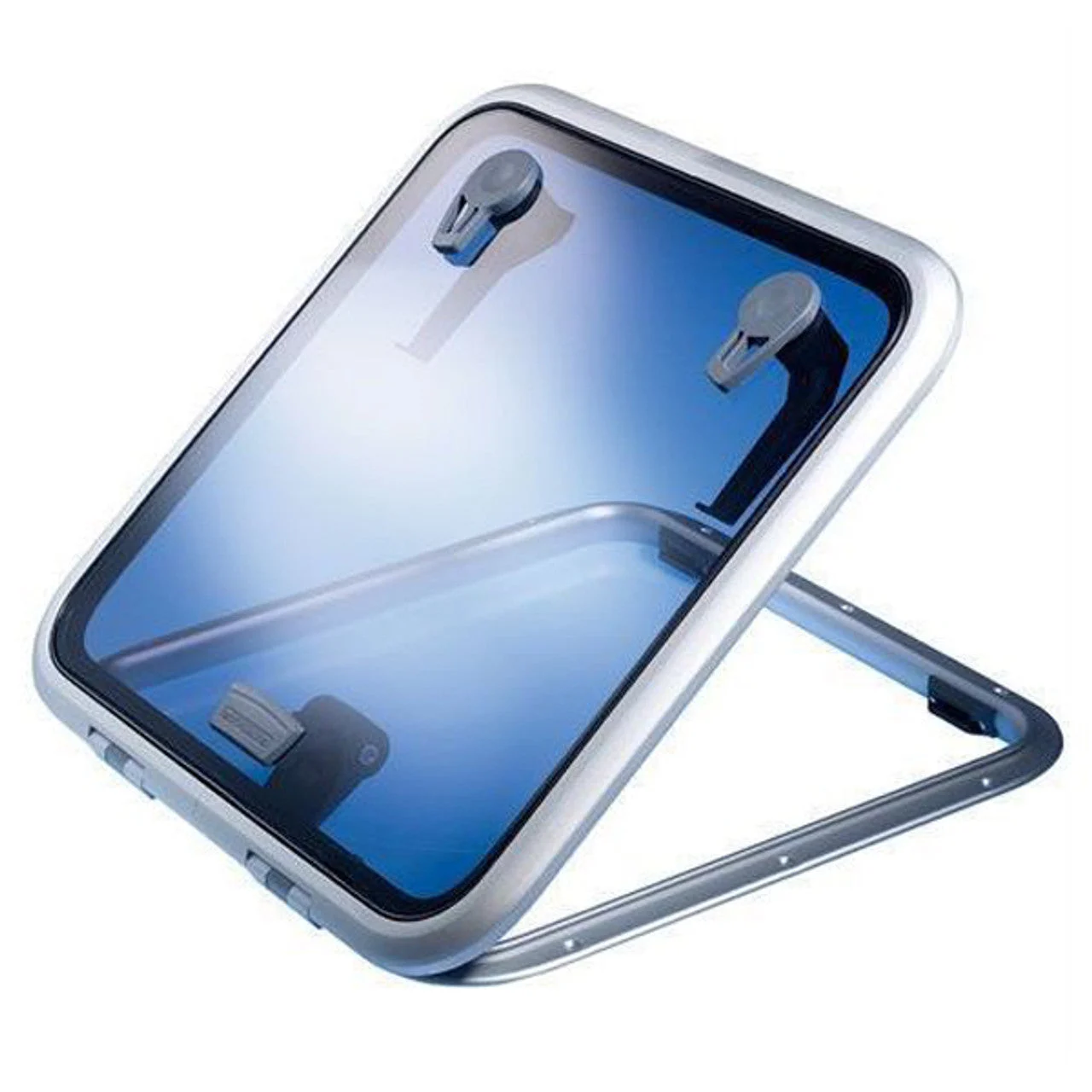

The Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts.

• Outside handles allow the hatch to be opened from on deck if it is not locked
• Low profile hatches open up to 180° (round hatches open to 170°)
• Friction levers hold the lid open in any position up to 95°
• Anodised aluminium frame for corrosion resistance
• Curved upper frame profile for strength as well as modern styling
• Available in Round and D-Hatch configuration
• Full range of spare parts available

Mounting Instructions

• Fit to a flat surface with a maximum tolerance of +/- 1mm.
• Fastening size at hinge section use (M6 / 1/4″).
• Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Manufacturer part #: 39910030

Technical Description Features American Metric Support System Self Supporting Self Supporting Lower Frame 9/16 in 15 mm Acrylic Colour Smoke Grey Smoke Grey Hatch Weight 4.9 in 2.2 kg Acrylic Window Thickness 5/16 in 8 mm Length X 19- 15/16 in 330 mm Width Y 13 in 330 mm Hinge Width Z 1 in 25 mm Radii R 2- 7/8 in 72.5 mm Cut-Out Length X1 10- 1/4 in 260 mm Cut-Out Width Y1 10- 1/4 in 260 mm Cut-Out Radii R1 1- 11/16 in 42.5 mm
