Description

Please call us to confirm availability.

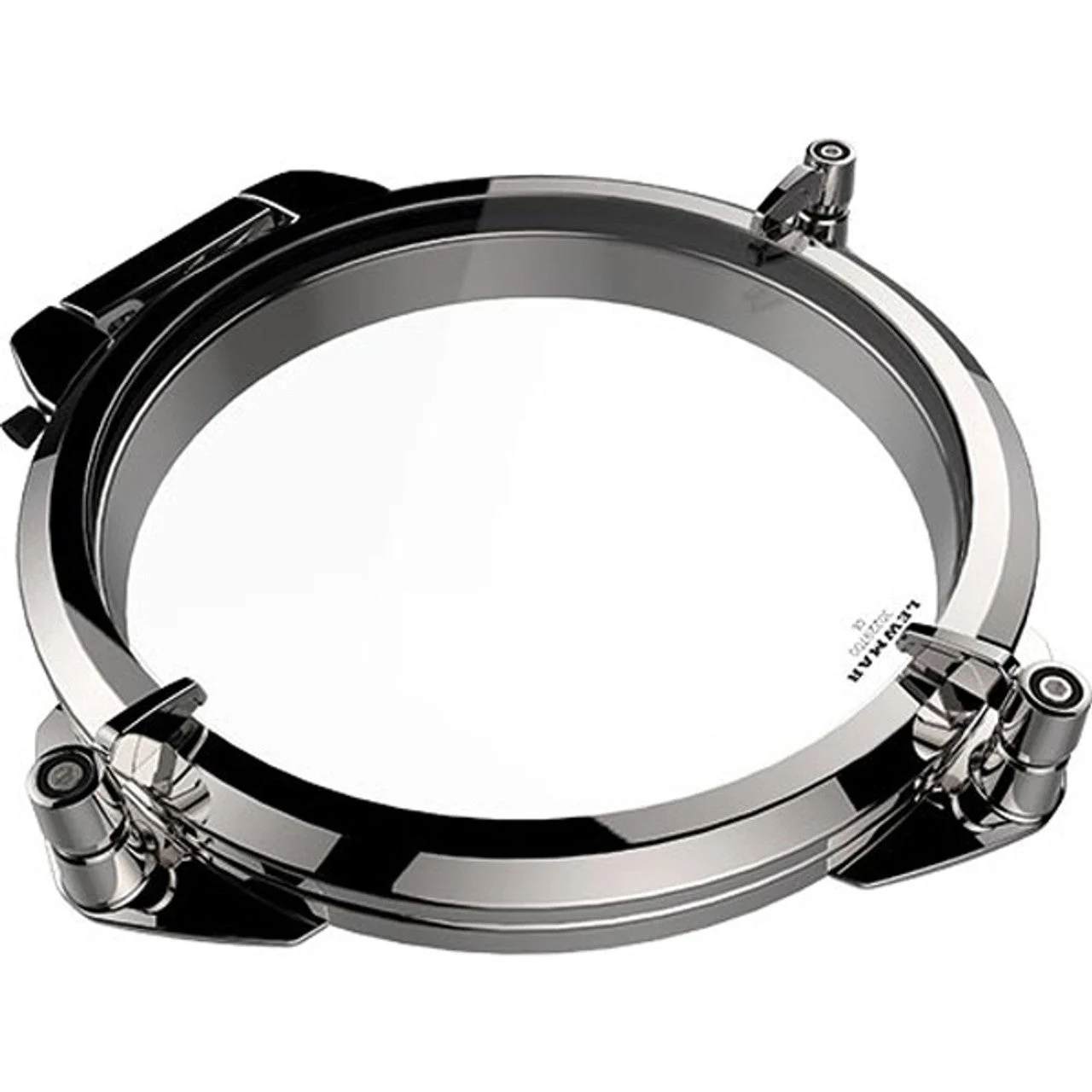

Lewmar’s stainless portlights feature polished stainless 316 outer frame. Inside the boat they are finished with a chrome or white plastic trim.

CE Approval

All Stainless Portlights presented on the website are CE Approved to the following levels

Sail Boat ; Category “A”, Area 2a

Power Boat; Category “B” Area 1

Mounting Instructions

Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.

• Portlights and fixed lights should be fitted to a flat surface with maximum tolerance of +/- 1mm.
• Maximum hull thickness 24mm, minimum hull thickness 8mm
• Portlight opening is restricted on very thick hulls. Opening angle at 21mm hull thickness is 165
• All Portlights supplied with M5 x 20 screws (suit hull thickness 12-17mm)
• No Flyscreen available for the Round Stainless Portlight

Manufacturer part #: 30209800

Technical Description Features American Metric Size 250mm 250mm Trim Colour Chrome Chrome Version Opening Opening Weight 3 lb 1.4 kg Overall Ø 9-7/8 in 250 mm Cut-out Ø 9-1/16 in 230 mm Cut-out A 3 in 76 mm Cut-out B 4- 7/16 in 113 mm
