Description

Please call us to confirm availability.

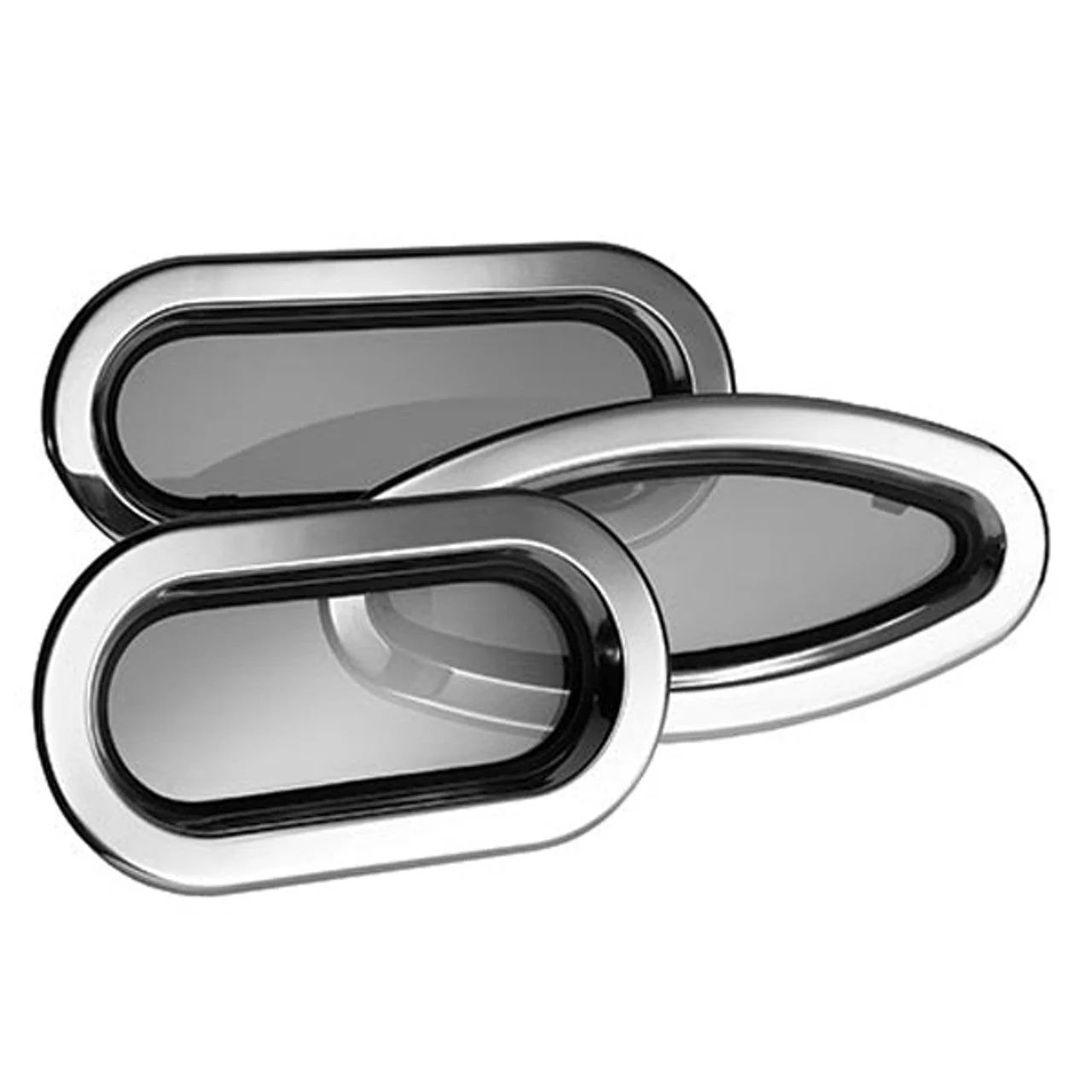

Lewmar Stainless portlights feature polished stainless 316 outer frames. Inside the boat they are finished with a chrome or white plastic trim. The handles and hinges leave the lens clear of obstructions, giving it an uncluttered view and clean modern look. Portlight handles apply the correct pressure evenly onto the seal in the closed position. Portlight handles are unable to vibrate open when in the closed position.

Flyscreens are supplied as standard.

Portlights and fixed lights come complete with fastenings.

Easily fitted by clamping the cabin sides between the inner and outer frame with screws provided, that are fastened into the outer frame.

Portlight opening is restricted on very thick hulls.

Opening angle at 21mm hull thickness is 165º

CE Approval

All Stainless Portlights presented on the website are CE Approved to the following levels

Sail Boat ; Category “A”, Area 2a

Power Boat; Category “B” Area 1

Mounting Instructions

Portlights and fixed lights should be fitted to a flat surface with maximum tolerance of +/- 1mm.

Manufacturer part #: 393120262

Technical Description Features American Metric Size 1 1 Trim Colour White White Version Opening Opening Weight 3.8 lb 1.7 kg X 7- 1/2 in 191 mm Y 14- 7/16 in 367 mm Z 3/16 in 4 mm R 2- 7/16 in 62 mm X1 6- 3/4 in 171mm Y1 13- 5/8 in 347 mm R1 2- 1/16 in 52 mm Acrylic Window Thickness 15/16 in 8 mm
