Description

Please call us to confirm availability.

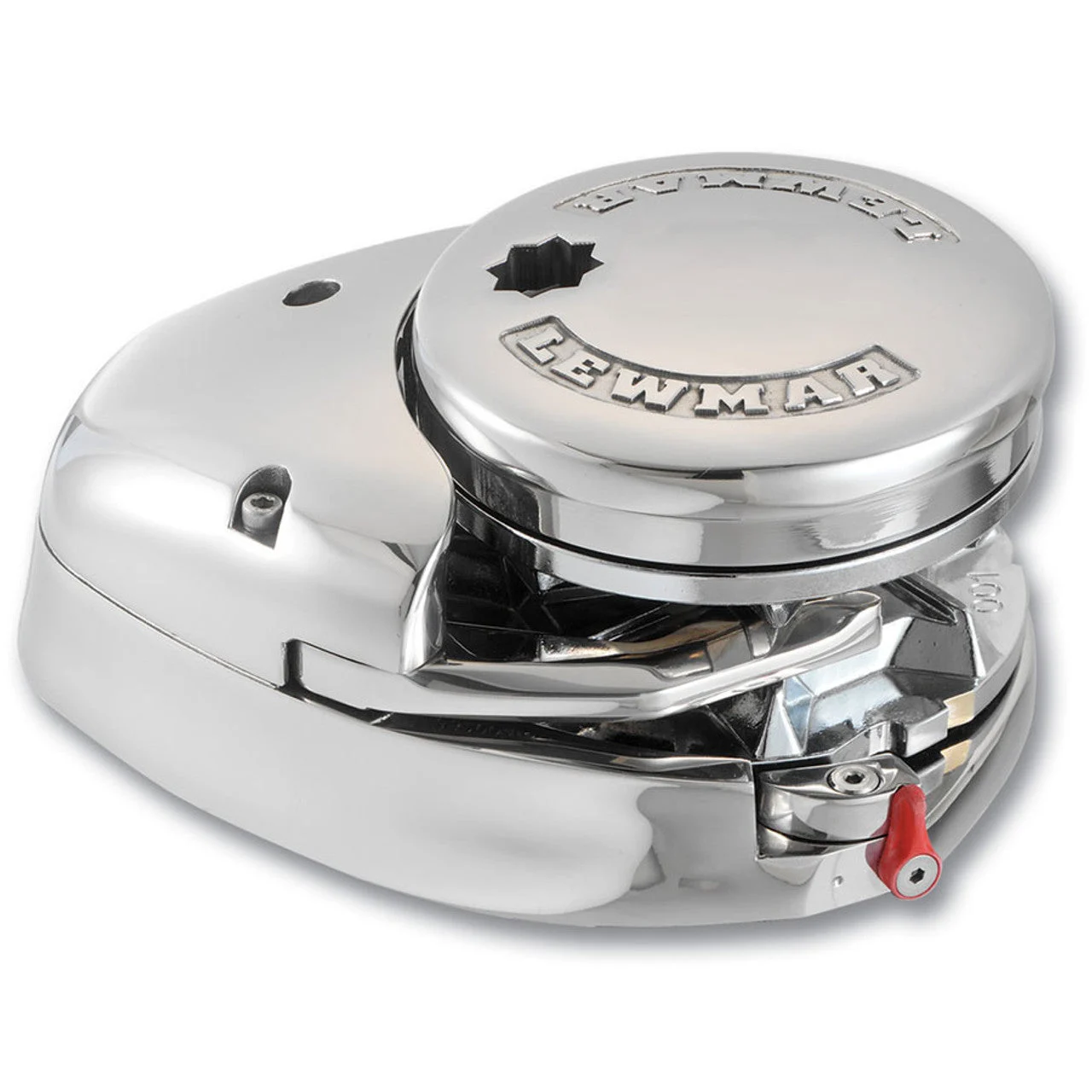

Product Description :

• Rope-chain gypsy
• Manual chain release (Free Fall)
• Cone clutch for smooth, easy control
• Optional manual override motor gearbox
• W.A.R.P Drum
• Fall safe anchor lock
• Robust/reliableworm gearbox
• FastFit™ option for quicker installation and less hassle
• Emergency recovery kit available
• Water resistant IP68 kits available
• For boats up to 12m (40ft)

Manufacturer part #: 6671011108-138

Technical Description Features American Metric Motor Power 700w 700w Max Pull 1000 lbs 454 Kg Working Load -250 lbs -113 Kg Max Line Speed 65 ft/min 19 m/min Normal Current Draw (A) 80A 80A Circuit Breaker (A) 90A 90A Weight 42 lbs 19 Kg A 1 -11/16 in 42 mm C 6- 5/16 in 161 mm E 6- 3/16 in 157 mm F 2- 3/4 in 70 mm G 9- 1/8 in 237 mm H 3- 5/8 in 92 mm I 4-1/4 in 114 mm J 12- 3/16 in 310 mm K 6-13/16 in 173 mm
