Description

Please call us to confirm availability.

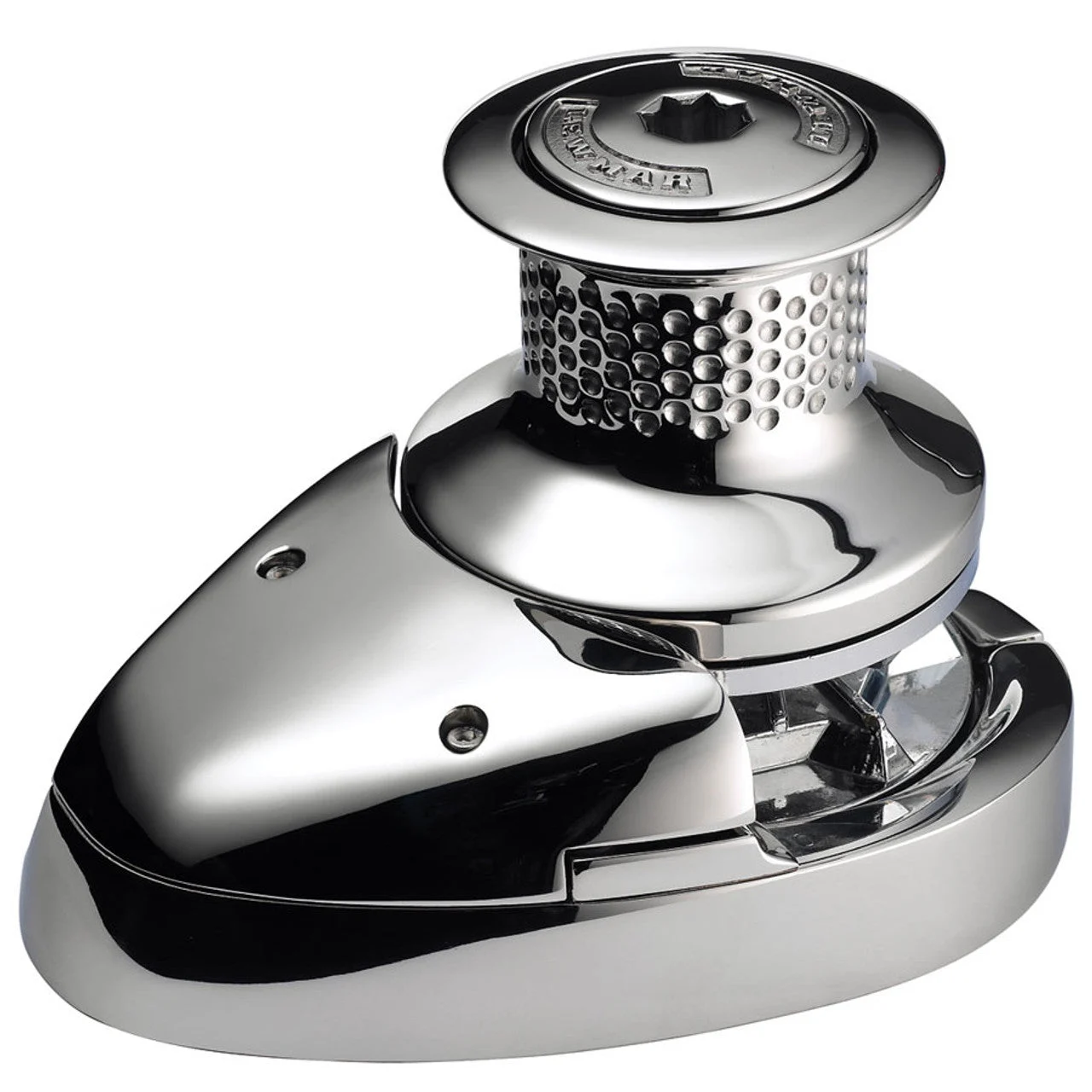

All Stainless Vertical Electric Windlass for Power and Sail Boats up to 14m (48ft)

• Rope-chain gypsy
• Manual chain release (Free Fall)
• Cone clutch for smooth, easy control
• W.A.R.P Drum
• Fall safe anchor lock
• Robust/reliable worm gearbox
• FastFit™ option for quicker installation and less hassle
• Emergency recovery kit available

Windlass kits feature Fastfit™ Motor Gearboxes.

FastFit™ Feature

FastFit™ motor gearbox attachment enables the windlass to be fitted by one man alone.

While the gearbox alignment to the deck unit is critical to a standard installation, the FastFit™ clamping system perfectly aligns the deck unit and motorgearbox for a perfect fit, first time.

• FastFit™ enables the motor / gearbox to be rotated and fixed in increments of 45°
• To install your windlass, simply fix the deck unit to the deck and then slide the gearbox up the shaft, swing the FastFit™ clamp shut and tighten up the bronze nut.

This set contains:

• Windlass X Handle
• 24v Sf Windlass Control 500081
• Circuit Breaker 50 Amp 9326
• V1v2v3 Gypsy/Str Kit 001
• Guarded Rocker Switch
• V3 24v Ff Mg-box Assy
• V2v3 Gd Ff Deck Unit

Manufacturer part #: 6672022198-140

Technical Description Features American Metric Motor Power (W) 900 900 Max Pull 1675 lbs 750 Kg Working Load -396 lbs -180 Kg Max Line Speed 79 ft/min 24 m/min Normal Current Draw (A) 45 45 Circuit Breaker (A) 50 50 Approx Weight 48.5 lbs 22 Kg
