Description

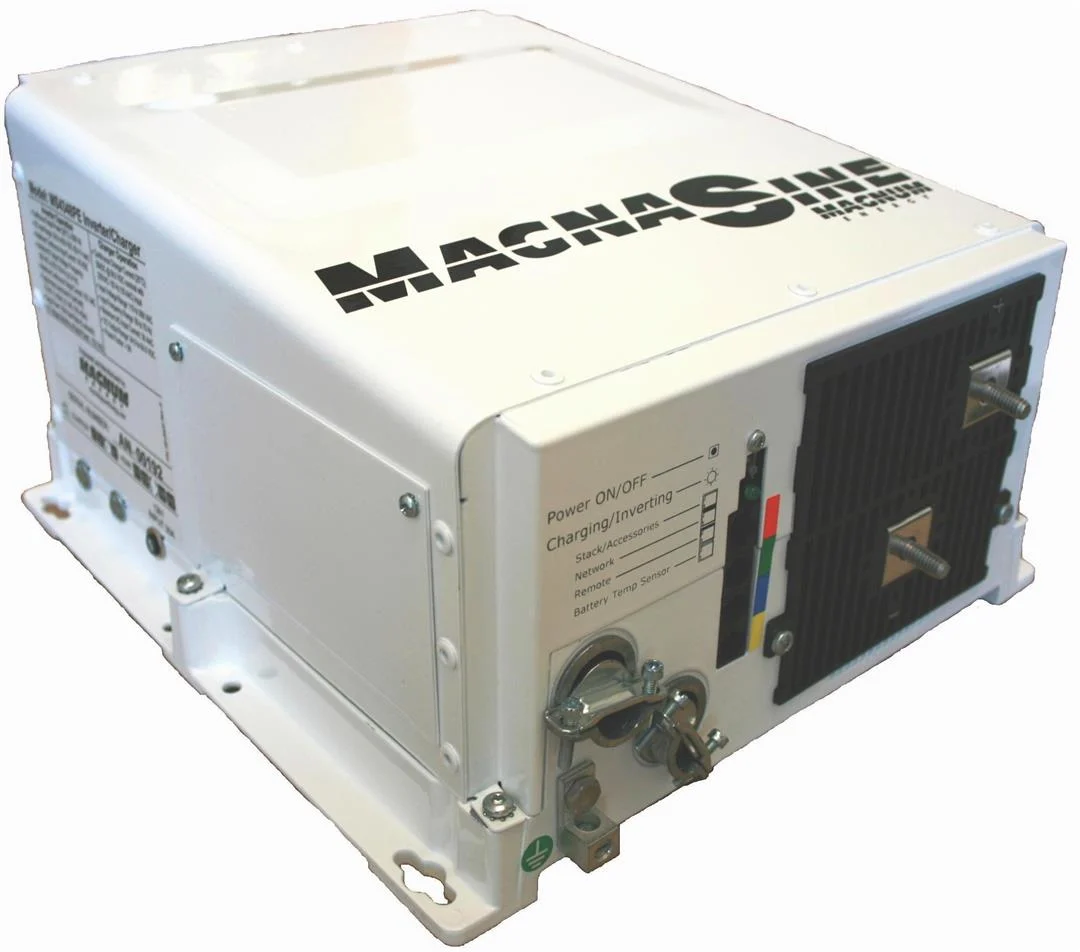

The MS-PE 230 Volt Series Inverter/Charger from Magnum Energy is a pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PE Series is powerful, easy-to-use, and best of all, cost effective. Parallel stacking: You can parallel up to four inverter/chargers for up to 17.2 Kilo Watts of power at 230 Volt. The Magnum Router is required for parallel stacking the MS-PE Series. Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger – using 25 To 30 Percent less AC current than standard chargers. Safe and reliable: The MS-PE Series is listed to the stringent requirements CE for renewable energy installations.

Magnum Energy MS4348PE Attributes

• Output Voltage: 240 Volt AC
• Input Voltage: 36-64 Volt DC
• Continuous Output Power (W): 4300 Watt
• Peak Output Power (W): 7500 Watt
• Ampere Rating: 55 Amp
• Efficiency: 91 Percent
• Number Of AC Outlets: 1
• Length (IN): 15 Inch
• Width (IN): 6-1/2 Inch
• Height (IN): 5 Inch
• Remote On/Off Capable: Yes
• With USB Port: No
• With Volt/Watt Meter: No
• With Short Circuit: No
• With Reverse Battery Protection: No
• With Thermal Protection: Yes
• With Battery Cables: No
• With Built-In Charger: Yes
• With Fuse: No

Magnum Energy MS4348PE Features & Benefits

• Pure Sine Wave
• Lightweight
• Accessible Design
• Convenient Switches
• Versatile Mounting
• Limited 2 Year Warranty

SKU: NVN-2006211
MPN: MS4348PE
UPC: 00892608001417
