Description

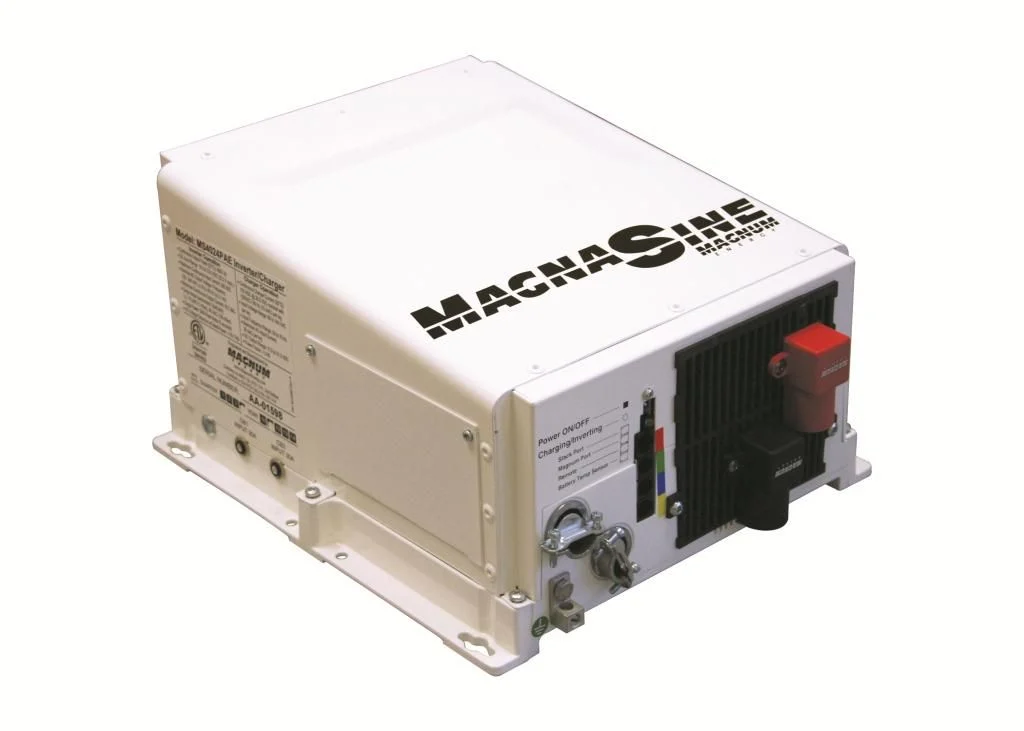

The MS-PAE 120/240 Volt Series Inverter / Charger from Magnum Energy is a pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PAE Series is powerful, easy-to-use, and best of all, cost effective. No series stacking required: The unique design of the MS-PAE Series can provide 120 and 240 Volts output in one unit, eliminating the need to stack two units together to get 240 Volts. Parallel stacking: You can parallel up to four inverter / chargers for up to 17.6 Kilo Watts of power at 120/240 Volt. The magnum panels and router are required for parallel stacking the MS-PAE Series. Power Factor Corrected (PFC) Charger: Our Power Factor Corrected Charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger – using 25 To 30 Percent less AC current than standard chargers.

Magnum Energy MS4448PAE Attributes

• Output Voltage: 120/ 240 Volt AC
• Input Voltage: 36-64 Volt DC
• Continuous Output Power (W): 4400 Watt
• Peak Output Power (W): 8500 Watt
• Ampere Rating: 60 Amp
• Efficiency: 94 Percent
• Number Of AC Outlets: 2
• Length (IN): 13-3/4 Inch
• Width (IN): 12.65 Inch
• Height (IN): 8 Inch
• Remote On/Off Capable: Yes
• With USB Port: No
• With Volt/Watt Meter: No
• With Short Circuit: No
• With Reverse Battery Protection: No
• With Thermal Protection: Yes
• With Battery Cables: No
• With Built-In Charger: Yes
• With Fuse: No

Magnum Energy MS4448PAE Features & Benefits

• Pure Sine Wave
• Lightweight
• Multiple Ports
• Accessible Design
• Convenient Switches
• Versatile Mounting
• Limited 3 Year Warranty

SKU: NVN-2002318
MPN: MS4448PAE
UPC: 00892608001394
