Description

Sensata Technologies – a pure sine wave inverter designed specifically for the most demanding mobile, backup, and off-grid applications.

Magnum Energy MS2812LU Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 2800 Watt
• Peak Output Power (W): 3900 Watt
• Ampere Rating: 23.3 Amp
• Efficiency: 90 Percent
• Length (IN): 13-3/4 Inch
• Width (IN): 12.65 Inch
• Height (IN): 8 Inch
• Remote On/Off Capable: Yes
• With USB Port: No
• With Volt/Watt Meter: No
• With Short Circuit: No
• With Reverse Battery Protection: No
• With Thermal Protection: Yes
• With Battery Cables: No
• With Built-In Charger: Yes
• With Fuse: No

Magnum Energy MS2812LU Features & Benefits

• Pure Sine Wave: Power Your T.V. S, Stereos, Plasma Screens, And Other Sensitive Electronics Without Worry
• Pure Sine Wave Inverter And Power Factor Corrected Charger Provide Clean, Reliable Inverter Power With Low Total Harmonic Distortion (THD) Of Less Than 5 Percent
• Lightweight: The Lightweight Aluminum Base And Cover Also Provides Noise Reduction And Corrosion Resistance
• Expanded Transfer Relay: 60 Amp Transfer Service On All Models
• Versatile Mounting: Mount The MS Series On A Shelf, Bulkhead, Or Even Upside Down
• Easy To Install
• Limited 3 Year Warranty

Magnum Energy MS2812LU Technical Bulletins

• 64-0007 Rev F (MS Series)_Web.pdf
• MS-series_datasheet_64-0200-RevO_web_2.pdf

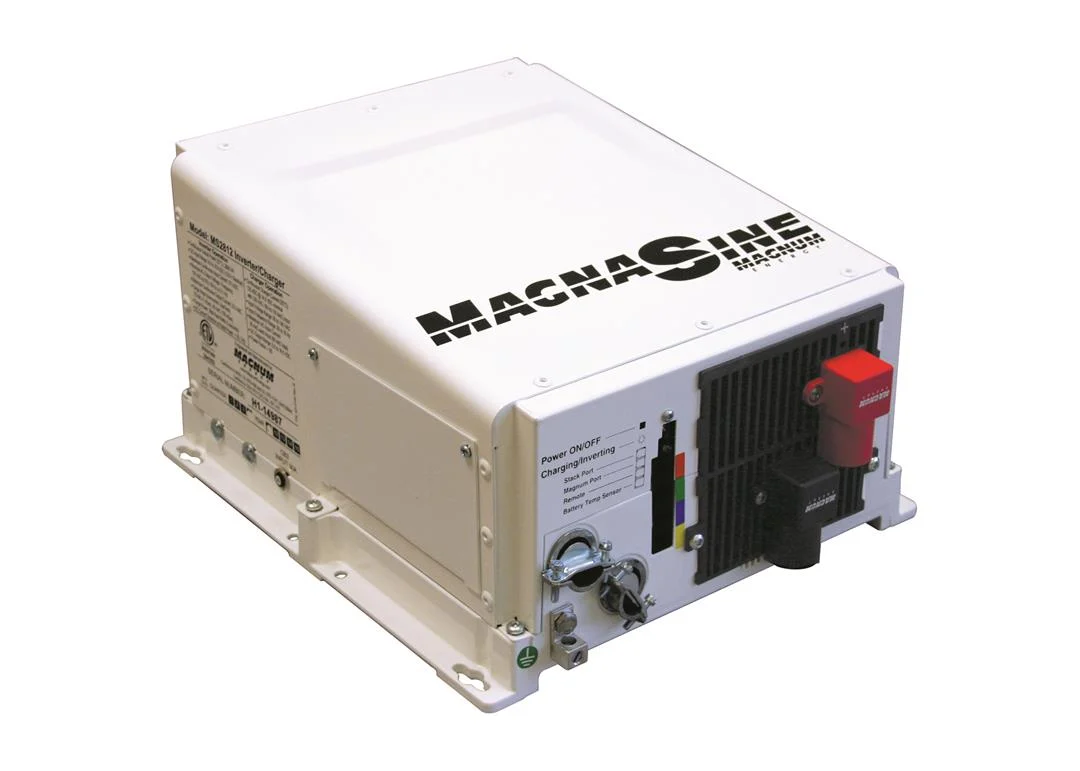

MS2812 Inverter/charger, MFG# MS2812-L-U, 2800 Watt true sinewave output, 12V/125 Amp Charger, hardwired A/C connections with transfer relay, LED power indicator, optional remote. Lithium compatible.
“The MS Series Inverter/Charger from Magnum Energy – a pure sine wave inverter designed specifically for the most demanding mobile and off grid applications. The MS Series is powerful, easy-to-use, and best of all, cost effective. Power Factor Corrected (PFC) Charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger – using 25-30% less AC current. The MS Series comes with an on/off inverter-mounted switch with an easy-to-read LED indicator. Dimensions in inches: 13.7 x 12.65 x 8.0.”
SKU: NVN-2000431
MPN: MS2812-L-U
UPC: 892608001110
