Description

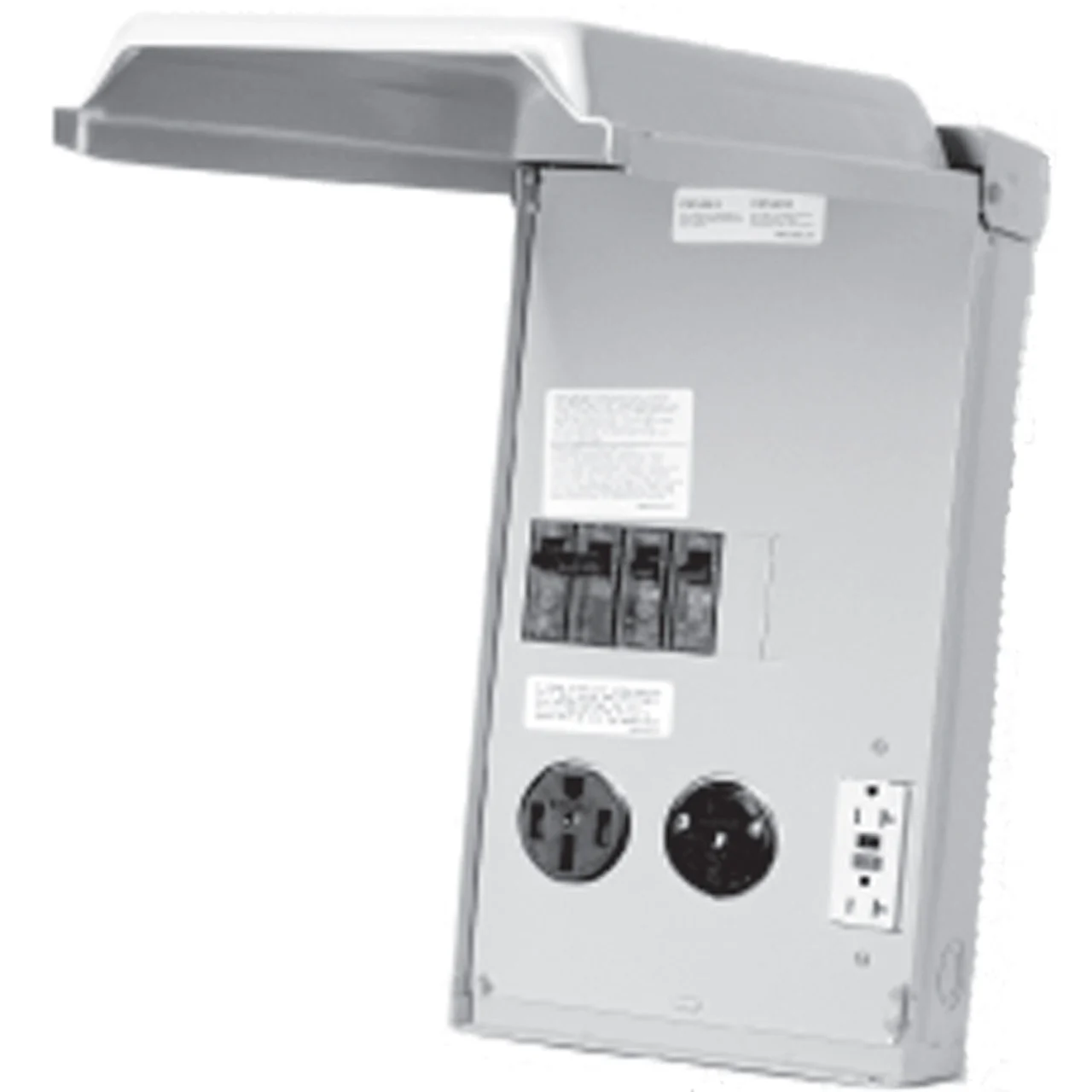

Midwest Electric Power Outlets provide one or more receptacles, with or without overcurrent protection, in a single enclosure, eliminating the need for several separately mounted components while providing maximum protection against weather and normal field use. Additionally, many models also include disconnecting, metering, and/or pedestal mounting functions in a single NEMA 3R enclosure/assembly. The U075CTL010 Unmetered Surface Power Outlet includes three receptacle models: BR54U, R32U and 5-20R2GFCI (with GFCI). This power outlet includes THQL2150, THQL1130, THQL1120 and Space THQL1120 circuit protection. Features an amperage rating of 100A, a Loop Feed Lug Type and a hub opening. Load and neutral bar LC55N1T. Cabinet size is 9 x 17.
G90 galvanized steel construction for superior corrosion and fading resistance
Rolled edge door for cord protection
Triple Receptacle Power Outlet: BR54U, R32U and 5-20R2GFCI (with GFCI); GFCI weather and tamper resistant GFI receptacles
Circuit Protection: THQL2150, THQL1130, THQL1120 and Space THQL1120
Amperage Rating: 100A; Hub opening
