Description

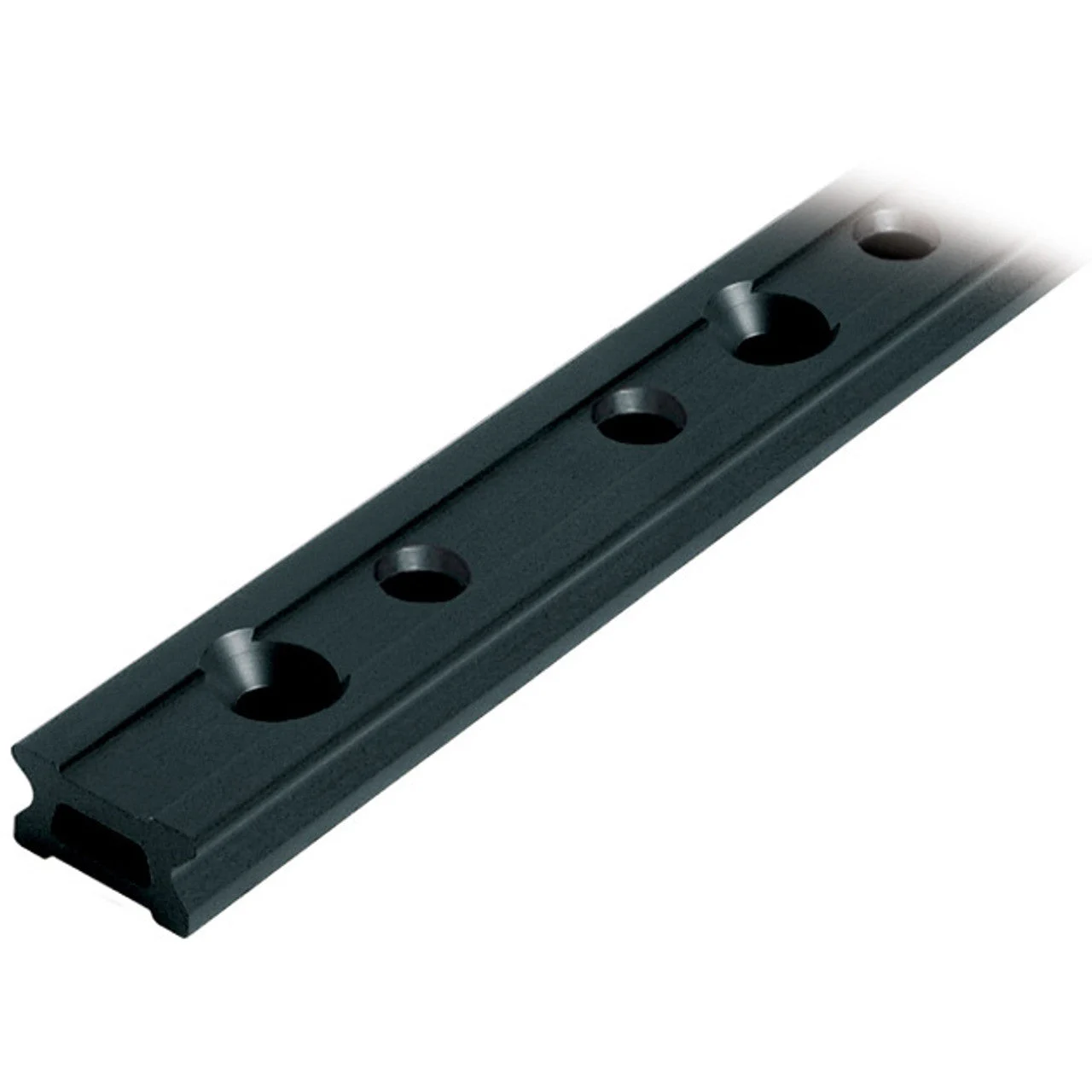

Ronstan Series 19 Ball Bearing Traveller Track 1.5m

Track Fastenings – 5mm (3/16″) countersunk fasteners at 100mm (3 15/16″) centres. Stop Holes – 50mm (1 31/32″) centres Minimum Curve Radius For 50mm (1 31/32″) car. Min horizontal ‘A’ curve radius = 1500mm (59″). Min horizontal ‘B’ curve radius = 1500mm (59″). For 57mm (2 1/4″) car. Min horizontal ‘A’ curve radius = 1500mm (59″). Min horizontal ‘B’ curve radius = 1500mm (59″). For 70mm (2 3/4″) car. Min horizontal ‘A’ curve radius = 2500mm (99″). Min horizontal ‘B’ curve radius = 3000mm (118″). For 85mm (3 11/32″) car. Min horizontal ‘A’ curve radius = 3500mm (138″). Min horizontal ‘B’ curve radius = 4500mm (177″). For 100mm (3 15/16″) car. Min horizontal ‘A’ curve radius = 5000mm (197″). Min horizontal ‘B’ curve radius = 5500mm (217″). For 148mm (5 27/32″) car. Min horizontal ‘A’ curve radius = 11000mm (433″). Min horizontal ‘B’ curve radius = 15000mm (591″).

Standard low profile track has stop holes to accept cars with plunger stops.

Specifications:

• Width (in): 3/4
• Length (in): 58 7/8

Materials:

• Alloy
