Description

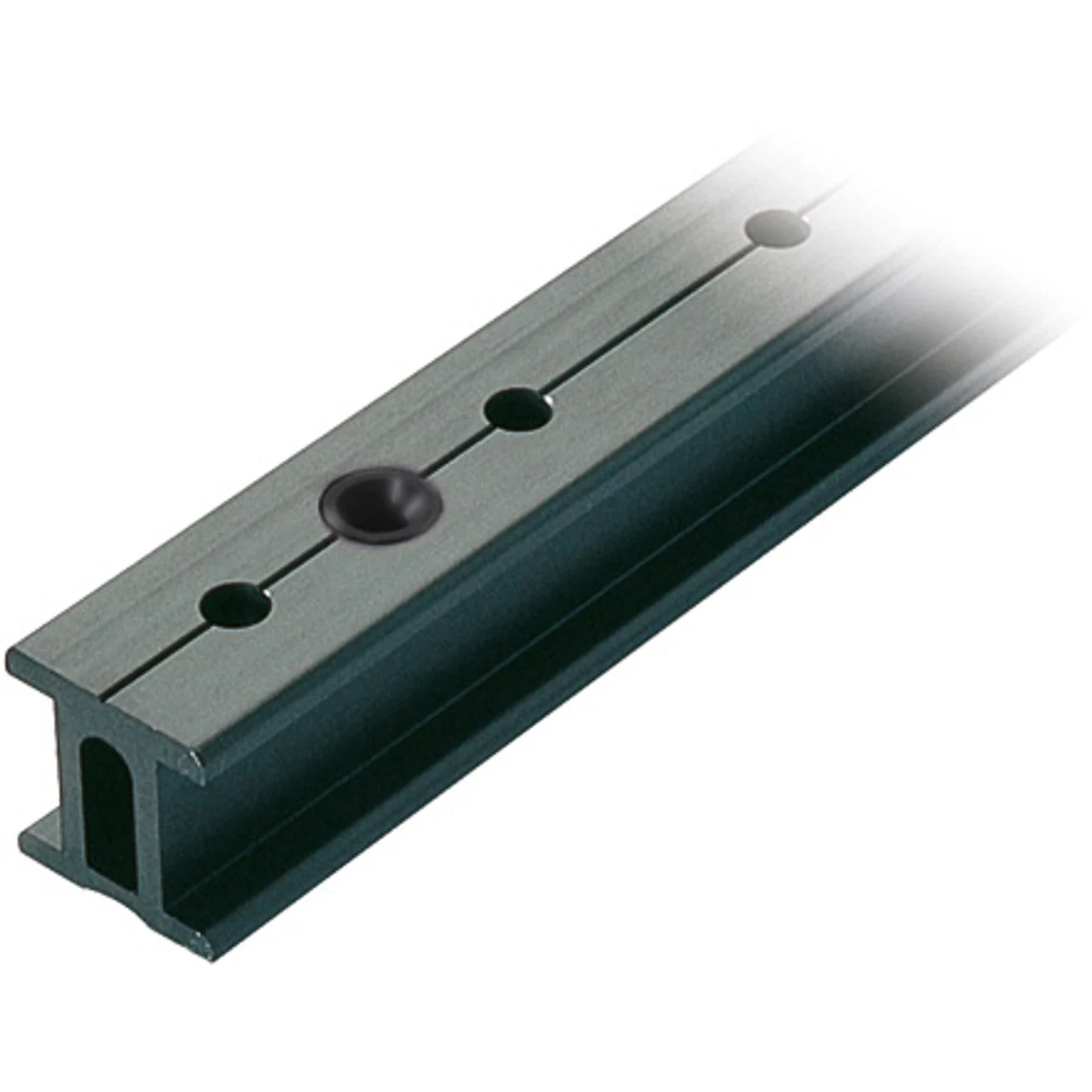

Ronstan Series 32 I-Beam Track, Black, 2m

• To suit 6mm (1/4″) countersunk fasteners at 100mm (3 15/16″) centres.
• 50mm (2″) centres. Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners.
• For 76mm (3″) car: Min horizontal ‘A’ curve radius = 500mm (20″). Min horizontal ‘B’ curve radius = 500mm (20″).
• For 157mm (6 3/16″) car: Min horizontal ‘A’ curve radius = 500mm (20″). Min horizontal ‘B’ curve radius = not suitable.

Specifications:

• Length (in): 78 9/16
• Width (in): 1 1/4

Materials:

• Aluminium alloy.
