Description

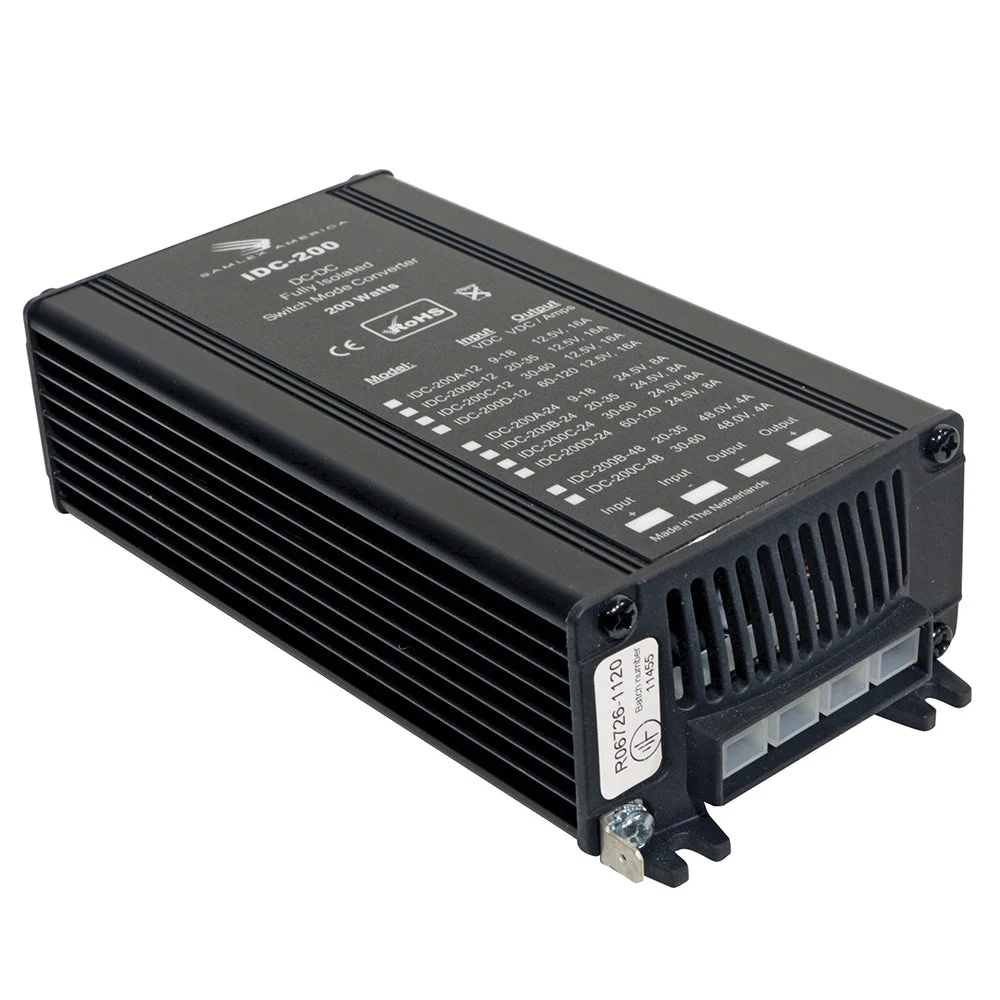

200W Fully Isolated DC-DC Converter – 8A – 20-35V Input – 24V Output

IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-200B-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 8 Amps (at 35 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-200B-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Features:

• Fully Isolated
• Short Circuit Protected
• Current Limited

Specifications:

• Input: 20-35 VDC
• Output: 24 VDC
• Watts: 200
• Amps: 8 Amps
• Weight: 1.5 (lbs)
• Weight: 0.68 (kg)
• Dimensions: 6.9 x 3.5 x 1.9 (in)
• Dimensions: 17.5 x 8.8 x 5.0 (cm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

Samlex IDC-200B-24 fully isolated step-down converter-Samlex IDC-200B-24 step-down 200 watt DC to DC converter is designed for applications that require current protection.
SKU: NVN-67262
MPN: IDC-200B-24
UPC: 622988067273
