Description

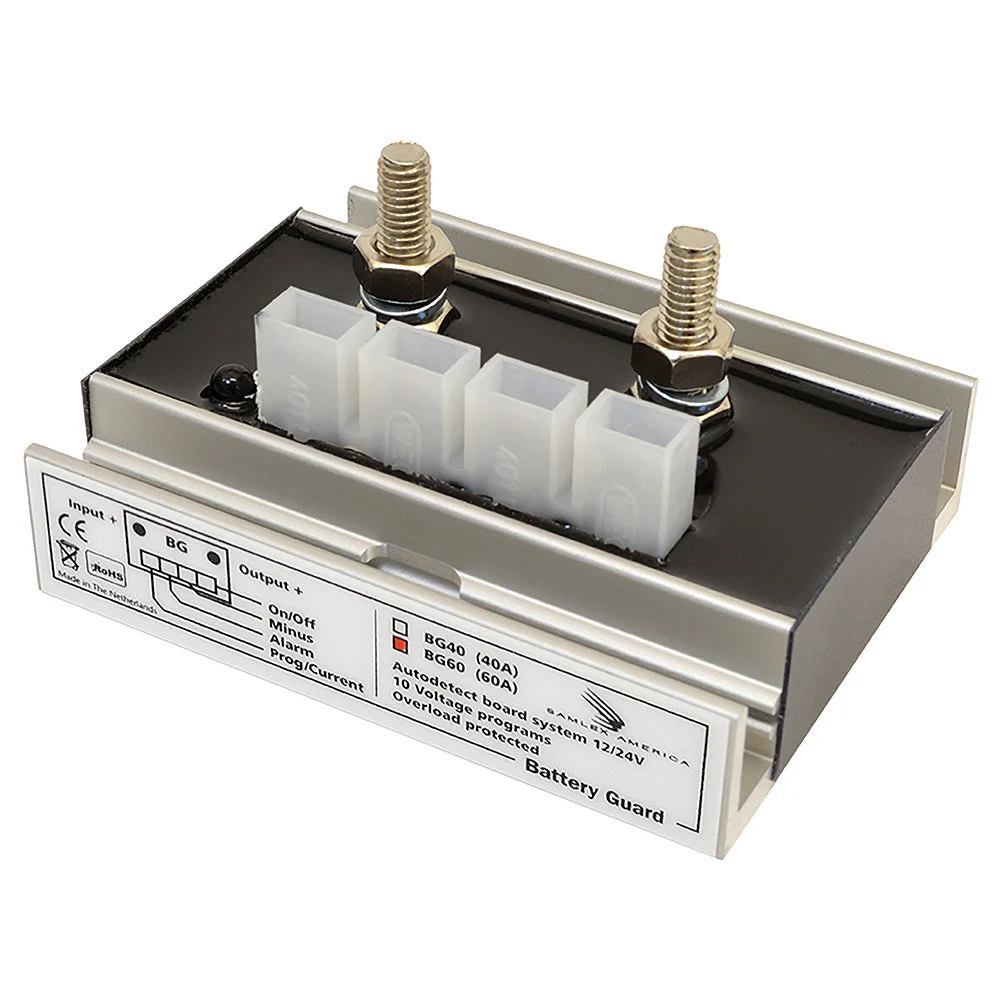

60A Battery Guard

The universal programmable Battery Guard (BG) prevents the excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The BG60 battery guard has an “Automatic Board System Detection”; the BG automatically detects the battery voltage (12 or 24V). The BG60 battery guard is capable of carrying 60A continuous load and 65A transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V battery systems, which can be easily programmed.

Features:

• Can be set to connect / disconnect at several different voltages with jumpers
• Batteries last longer
• Prevents damage to connected components
• Prevents excessive voltage caused by faulty alternators or chargers

Specifications:

• Input: 6-35 VDC
• Output: 6-35 VDC
• Amps: 60 Amps
• Weight: 0.4 (lbs)
• Weight: 0.18 (kg)
• Dimensions: 3.25 x 2.38 x 1.5
• Dimensions: 8.3 x 6 x 3.8 (cm)
• Warranty: 2 Year Limited

Applications:

• Marine
• Automotive
• Recreational

Samlex BG-60 is a universal programmable battery protection cover that prevents over-discharge of the battery and protects electronic equipment from overvoltage. BG60…
SKU: NVN-67240
MPN: BG-60
UPC: 622988086502
